RSCT-1000A/0-5VAC
Jiangyin Spark
Product Overview

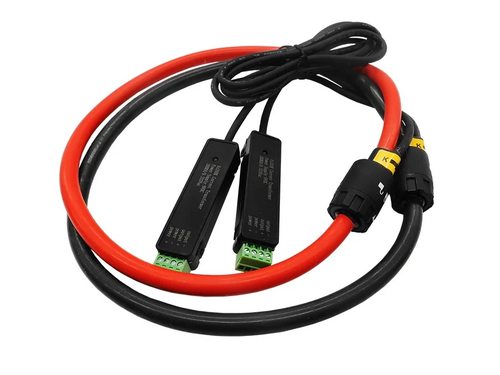

The Jiangyin Spark 1000A/0-5V AC flexible Rogowski coil with integrator converts AC current into a proportional voltage signal for energy meters, power monitoring equipment and Energy Management Systems.
At the rated 1000A primary current, the sensor provides a 5V AC output. Its flexible split-core design allows installation around existing cables, conductors and busbars without disconnecting the primary circuit.
The air-core construction avoids magnetic saturation and is suitable for retrofit and high-current measurement applications.
Technical Specifications
* Rated input current: 1000A AC
* Rated output: 0-5V AC
* Output at rated current: 5V AC at 1000A
* Accuracy: ±1% from 5% to 120% of rated current
* Accuracy frequency range: 45-65Hz
* Phase angle: ≤±1° from 5% to 120% of rated current
* Linearity: 1%
* Nominal frequency: 50/60Hz
* Working voltage: 600V
* Integrator power supply: 9-24V DC
* Coil cross-section diameter: 10.5mm
* Window size: 100mm, 150mm or customized
* Lead wire length: 1 meter or customized
* Withstand voltage: 3000V
* Operating temperature: -25°C to +70°C
* Protection class: IP67
* Compliance: CE and UKCA
Applications
* Energy meters and submeters
* Power monitoring systems
* Energy Management Systems
* Electrical distribution panels
* Industrial current monitoring
* Cable and busbar current measurement
* Retrofit current monitoring projects
FAQ
Q: What is the output signal of this Rogowski coil?
A: It provides a proportional 0-5V AC output and reaches 5V AC at the rated 1000A primary current.
Q: Is the integrator included?
A: Yes. The sensor is supplied with an integrator requiring a 9-24V DC power supply.
Q: Can it be installed without disconnecting the cable?
A: Yes. The flexible split-core coil can be opened and installed around an existing cable or busbar.
Q: Can the coil size and lead wire length be customized?
A: Yes. Jiangyin Spark provides customized window sizes, coil lengths and lead wire lengths for OEM applications.
