RSCT-1000A/100mV
Jiangyin Spark

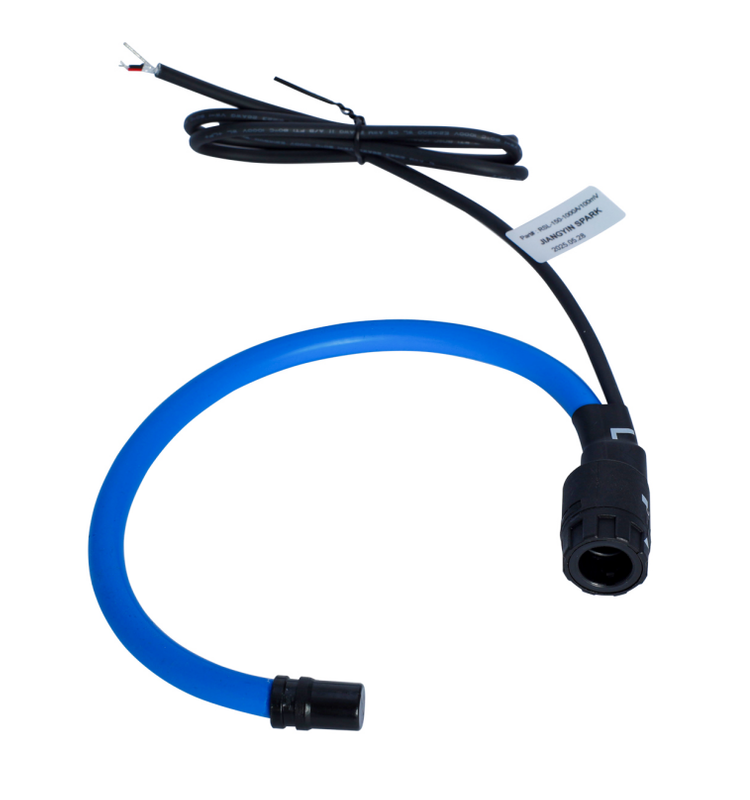

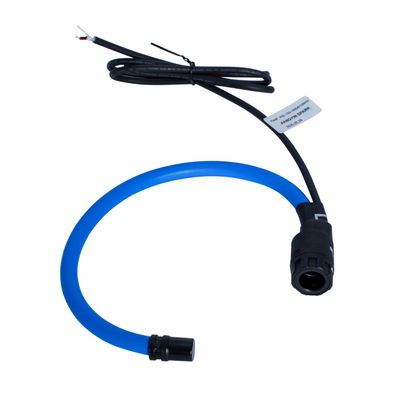

The RSCT-1000A/100mV Flexible Rogowski Coil Current Sensor is designed for AC current measurement, energy monitoring and power metering applications.
With a rated output of 100mV at 1000A AC, 50Hz, its flexible coil design allows easy installation around existing cables and busbars, especially where conventional rigid current transformers are difficult to install.
The RSCT series features a wide measuring range, stable performance, fast response and good linearity. Coil dimensions, cable length and electrical specifications can be customized for OEM applications.
Model: RSCT-1000A/100mV
Rated Input: 1000A AC
Rated Output: 100mV @ 1000A, 50Hz
Type: Flexible Rogowski Coil Current Sensor
Frequency: 45–65Hz
1000A / 100mV rated output at 50Hz
Flexible design for easy installation
Suitable for large cables and busbars
Wide AC current measurement range
Linearity ≤1% FS
Fast response time ≤0.01ms
10kV AC / 1min galvanic isolation
Custom coil size and cable length available
OEM specifications available
| Model | RSCT-1000A/100mV |
| Rated Input | 1000A AC |
| Rated Output | 100mV @ 1000A, 50Hz |
| Frequency | 45–65Hz |
| Coil Type | Flexible Rogowski Coil |
| Linearity | ≤1% FS |
| Response Time | ≤0.01ms |
| Isolation | 10kV AC / 1min |
| Coil Size / Cable Length | Customizable |
Energy monitoring systems
Power meters and submeters
Solar and renewable energy systems
EV charging equipment
Industrial power monitoring
Building energy management systems
Coil diameter can be customized
Cable length can be customized
Rated current and output can be customized
Connector and terminal options available
OEM/ODM service available
30 years of current sensor manufacturing experience
18 years of export experience
OEM solutions and samples available
