RSCT-1000A/5A
Jiangyin Spark

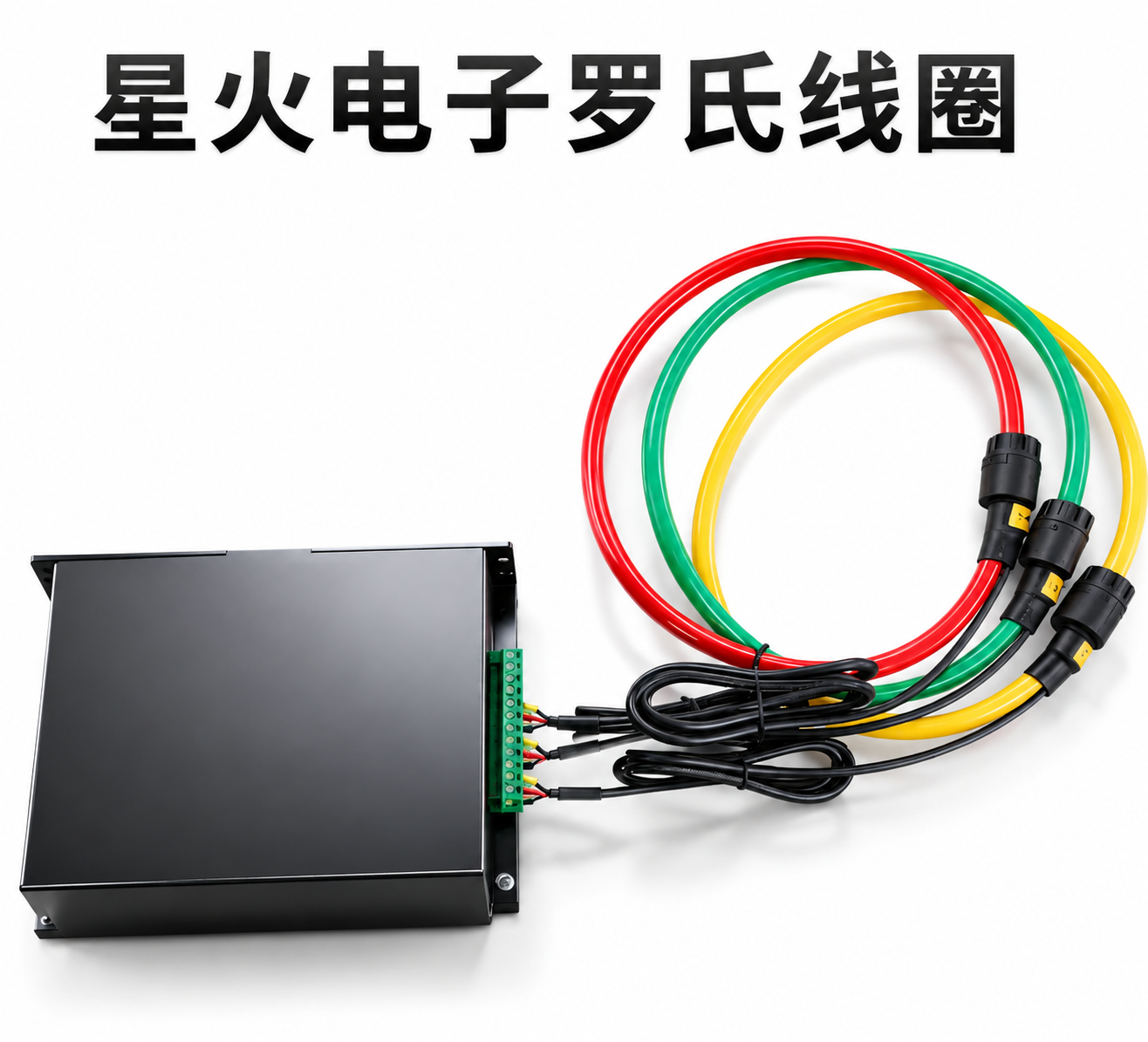

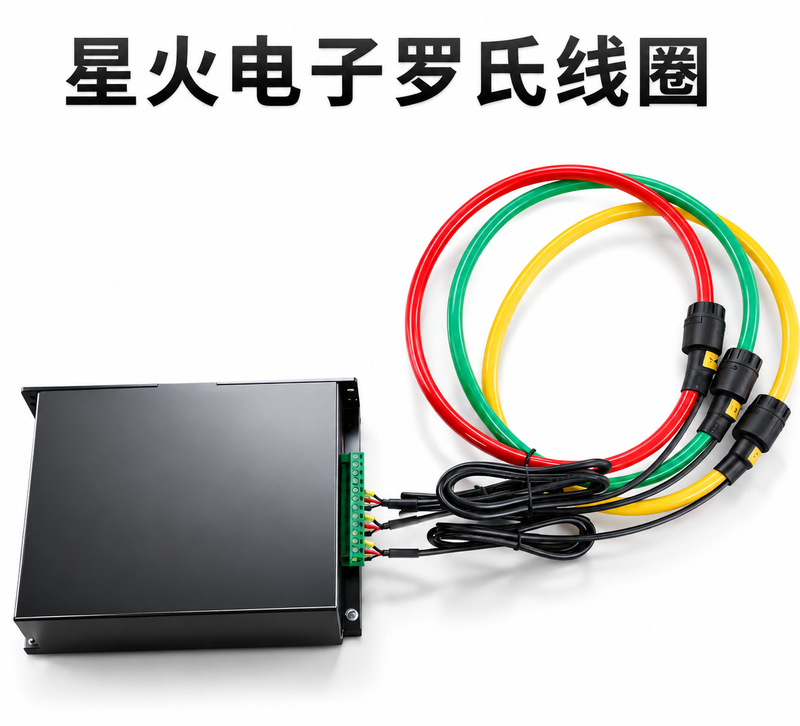

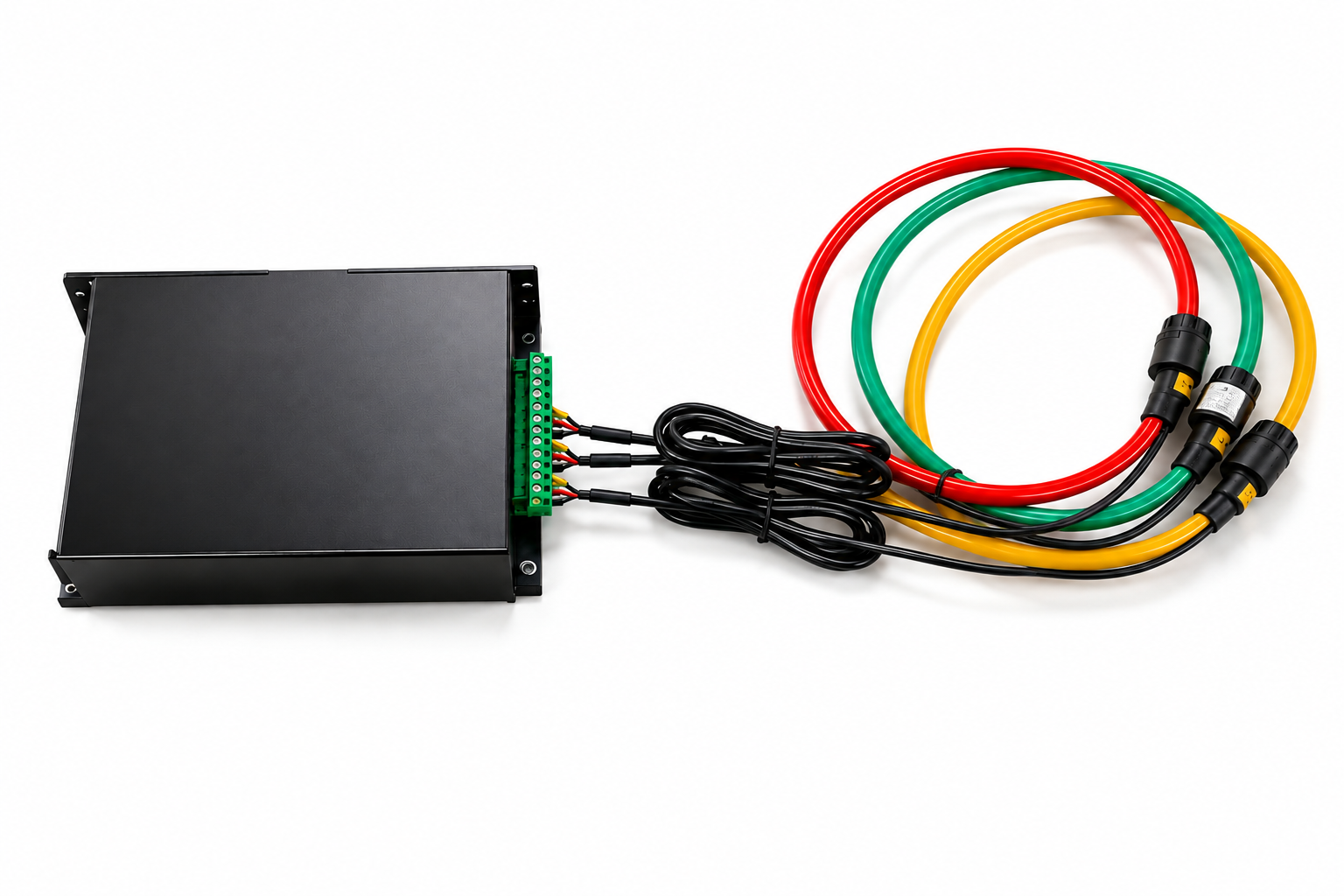

The Three Phase Rogowski Coil with 5A output is designed for AC current measurement in three-phase electrical systems. It combines flexible Rogowski coil sensors with signal conversion to provide a standard 5A AC output, making it suitable for connection with energy meters, power meters, monitoring equipment and industrial control systems.
The flexible coil design allows easy installation around large cables, conductors and busbars, especially where conventional current transformers (CTs) are difficult to install.
Three-phase AC current measurement
Wide current range from 100A to 10kA
Standard 5A AC output
Accuracy: ≤1%
Frequency range: 45–65Hz
Flexible and lightweight Rogowski coil design
Easy installation around large cables and busbars
Galvanic isolation up to 10kV AC / 1 min
Suitable for power monitoring and energy management systems
Custom coil sizes and current ranges available
| Parameter | Specification |
|---|---|
| Current Range (AC) | 1000A |
| Measurement Range | 5%–120% |
| Power Frequency | 45–65Hz |
| Rated Output | 5A AC |
| Load | <0.1Ω |
| Supply Voltage | ±8 V ≥50W |
| Power Consumption | <300mA |
| Offset Drift | ≤±1mV/℃ @ -25℃ to +70℃ |
| Accuracy | ≤1% |
| Linearity | ≤1% FS |
| Response Time | ≤20ms |
| Galvanic Isolation | 10kV AC / 1 min |
| Isolation Resistance | 1000MΩ @ DC 500V |
| Operating Temperature | -25℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
The 5A output Rogowski coil can be used for a wide range of current measurement and power monitoring applications, including:
Three-phase energy meters
Power monitoring systems
Energy Management Systems (EMS)
Electrical distribution panels
Industrial power monitoring
Motor and equipment monitoring
Large cable and busbar current measurement
Renewable energy and power distribution systems
Unlike conventional solid-core current transformers, the flexible Rogowski coil can be installed around large conductors and busbars with limited installation space. This makes it suitable for both new electrical systems and retrofit power monitoring projects.
Different current ranges, Rogowski coil sizes, cable lengths and output configurations can be customized according to application requirements. Please contact us with your required current range, conductor size and output specification for model selection.
