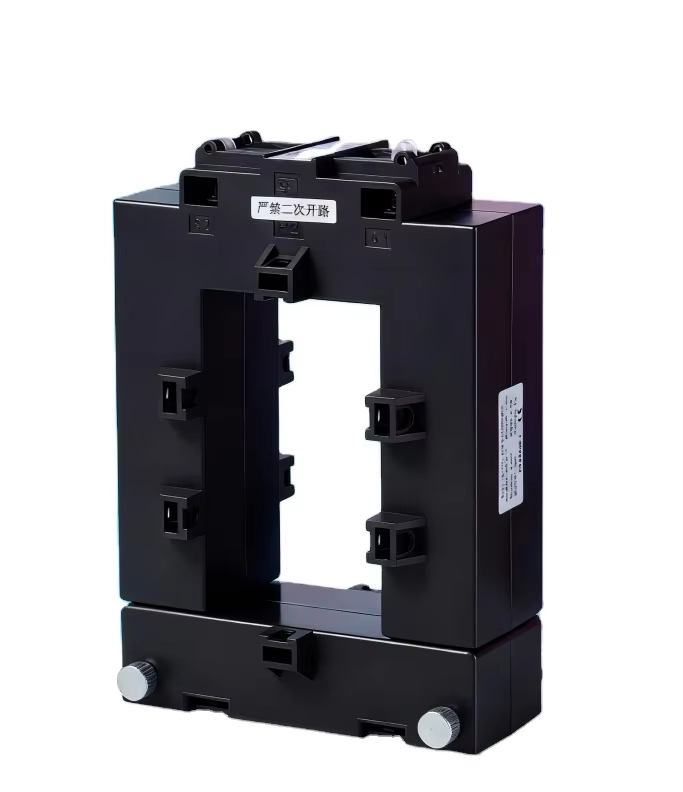

KCT610 1500A/5A Class 0.5S Split Core Busbar Current Transformer
The KCT610 is a high-current split core current transformer designed for indoor busbar metering and power monitoring applications. Its opening structure allows installation without disconnecting the primary busbar, making it suitable for retrofit projects and industrial electrical systems.
Main Specifications
Model: KCT610
Rated primary current: 1500A
Rated secondary current: 5A
Accuracy class: 0.5S
Rated burden: 5VA
Frequency: 50/60Hz
Type: Split core / opening type
Application: Indoor busbar installation

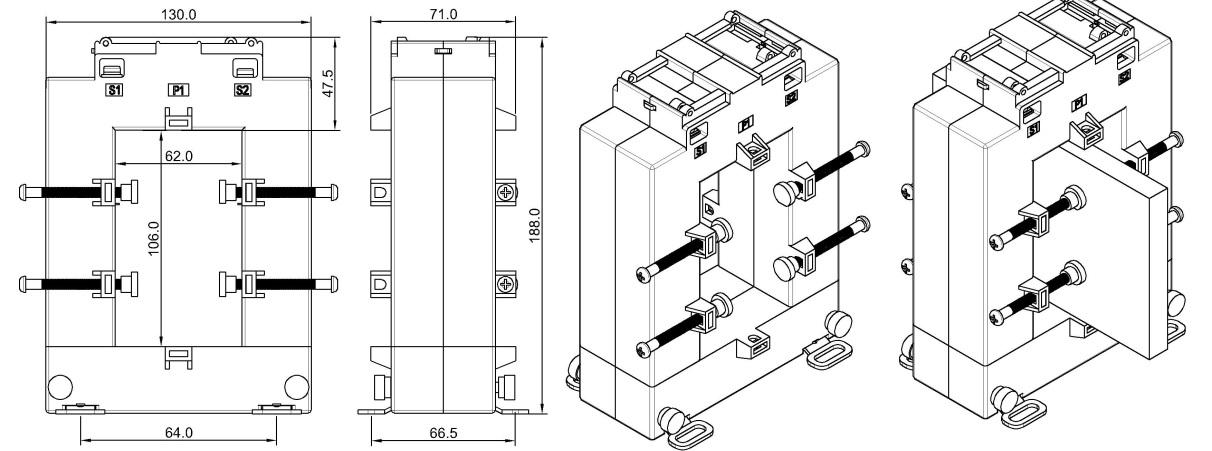

Applicable busbar: 60mm / 100mm
Operating temperature: -25°C to +55°C
Protection level: IP23
Standard: IEC 61869-1 / IEC 61869-2
CE compliant
Customized current ratio and dimensions available
Features
Class 0.5S high measurement accuracy
1500A/5A current ratio
Split core design for easy installation
Suitable for high-current busbar measurement
No need to disconnect the primary conductor
5VA rated burden
Suitable for power meters, energy monitoring and industrial distribution systems
OEM and customized versions available
Applications
Power distribution cabinets
Energy meters
Industrial power monitoring
Busbar current measurement
Switchgear
Energy management systems
Retrofit electrical monitoring
Commercial and industrial metering
