FSCT36-400A/50mA
Jiangyin Spark
Description

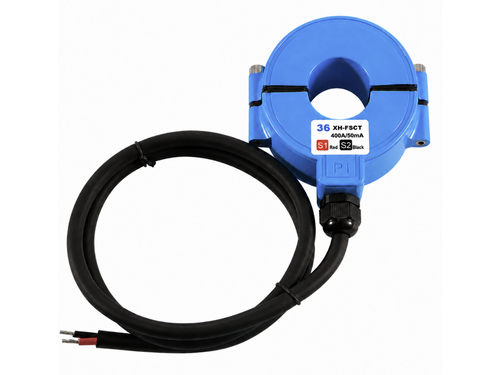

The FSCT36 is a 400A/50mA IP67 waterproof split core current transformer designed for outdoor current measurement and power monitoring applications.
The split-core design allows quick installation around existing cables without disconnecting the conductor. With a 36mm window and waterproof construction, it is suitable for outdoor electrical equipment, distribution panels and industrial monitoring systems.
Features
Rated primary current: 400A
Secondary output: 50mA

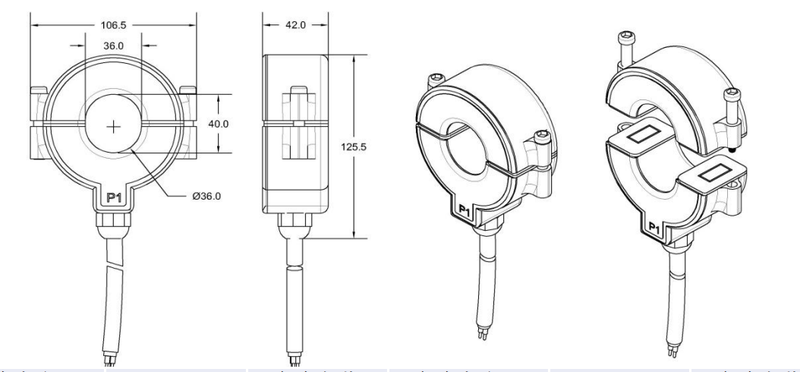

Window size: 36mm
Split-core design for easy installation
IP67 waterproof construction
Suitable for outdoor applications
High accuracy and stable output
50/60Hz operating frequency
Custom cable length and connector available
Applications
ems, electrical distribution panels, industrial equipment, solar power systems and other current measurement applications.
Customization
Custom current ratios, secondary outputs, cable lengths and connectors are available for OEM projects. Please contact us with your required current rating, output, accuracy and cable length.
