5 AMP Mini Split-Core AC Current Transformer Sensor 5A/333mV | XH-SCT-T10

Product Description

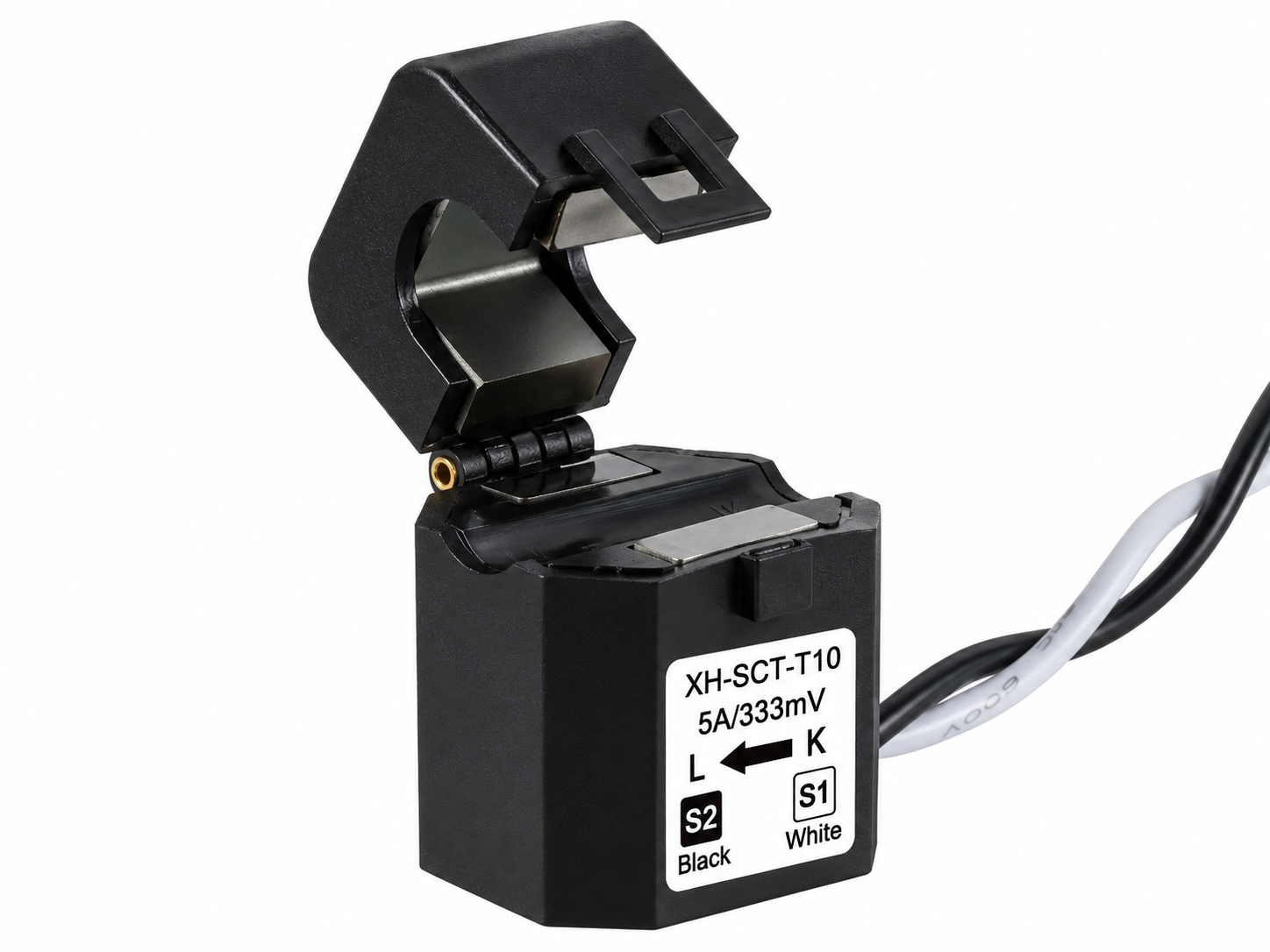

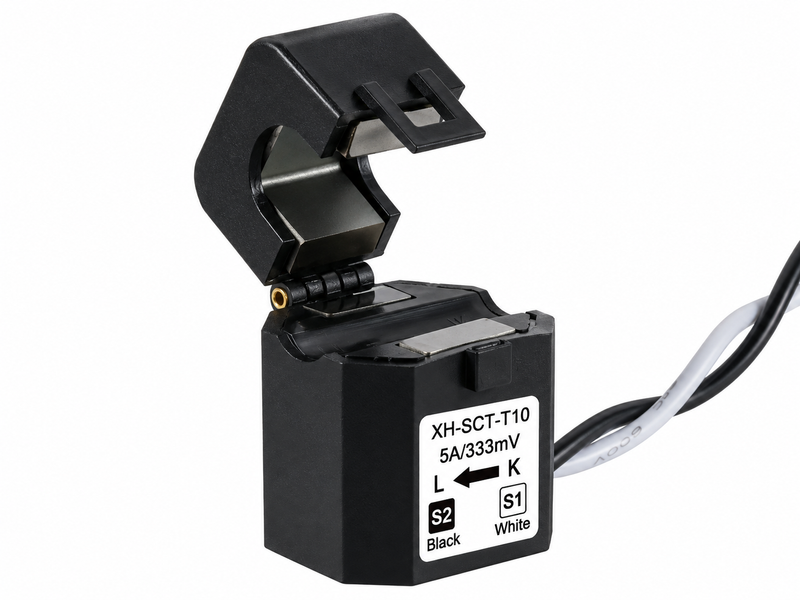

5A 333mV Mini Split Core AC Current Transformer Sensor XH-SCT-T10

The XH-SCT-T10 5A/333mV mini split core AC current transformer sensor is designed for low-current AC measurement in energy meters, data loggers, power monitoring systems and building automation applications.

With a 5A primary current and 333mV AC output, this compact current transformer provides a convenient solution for applications where installation space is limited. The 10mm inner diameter split-core design allows the CT to be installed around an existing conductor without disconnecting the circuit, making installation fast and suitable for retrofit projects.

The XH-SCT-T10 can be customized with different lead lengths, connectors, labels and output specifications according to customer requirements.

Features

• Rated primary current: 5A AC

• Output: 333mV AC

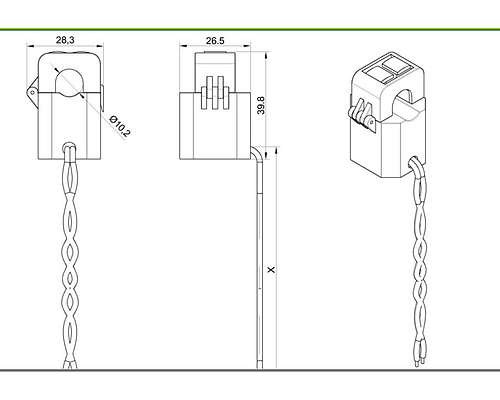

• 10mm inner diameter

• Mini split-core design

• Non-invasive installation

• Compact size for limited installation space

• Suitable for 50Hz / 60Hz

• Stable output for energy monitoring applications

• Custom lead length available

• Custom connector available

• Custom label and OEM service available

• CE and UL compliant options

Technical Specifications

Applications

The 5A/333mV split core current transformer can be used in:

• Energy meters

• Data loggers

• Power monitoring systems

• Building automation systems

• HVAC monitoring

• Electrical panels

• Equipment current monitoring

• Sub-metering systems

• Smart energy management systems

• Industrial control systems

Customization

Jiangyin Spark can provide customized versions according to your project requirements, including:

• Primary current ratio

• Output voltage

• Lead length

• Connector type

• Cable color

• Product label

• Private branding

• Packaging

• OEM / ODM requirements
