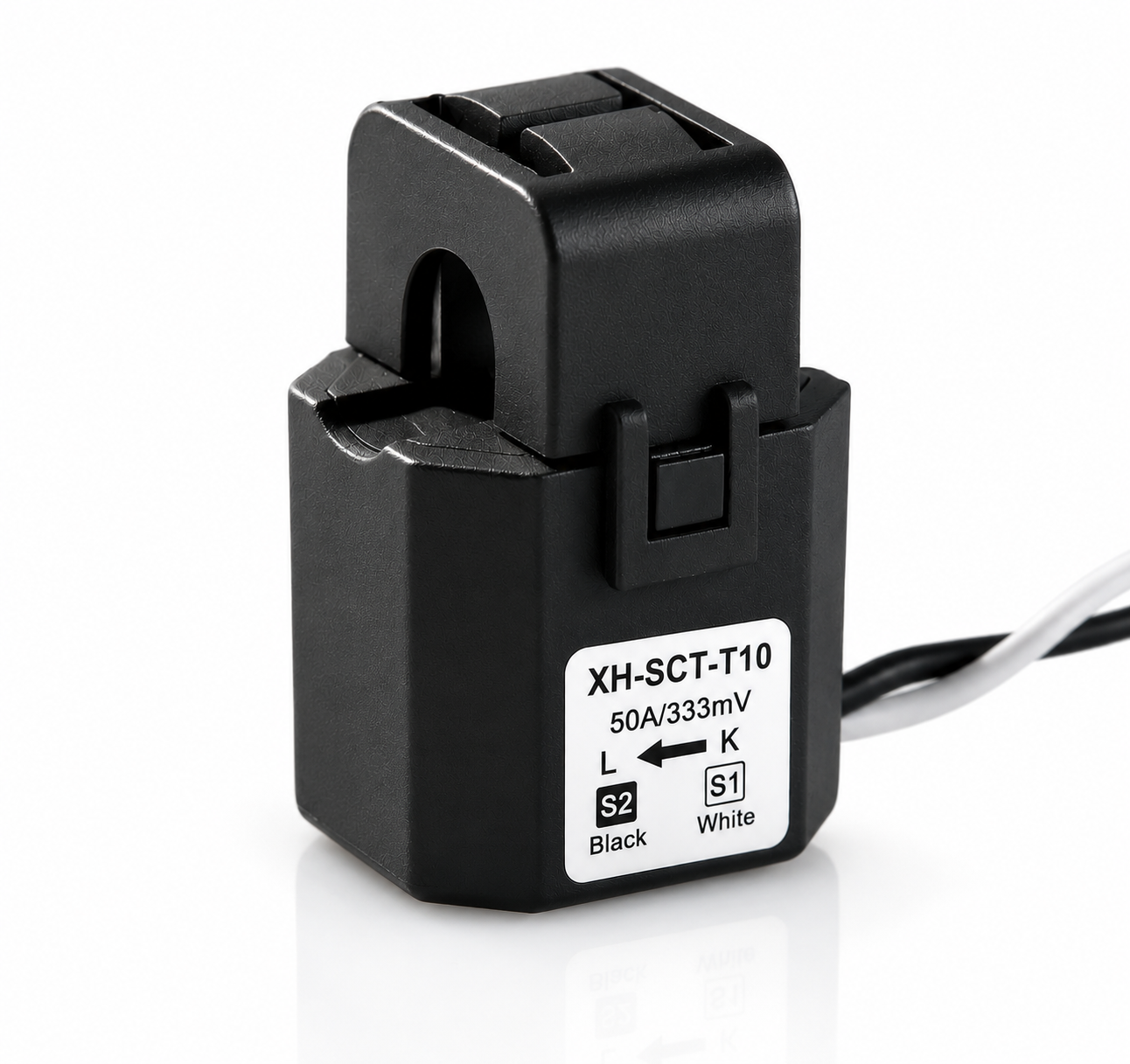

XH-SCT-T10
Jiangyin Spark
The XH-SCT-T10 is a compact split core current transformer designed for energy monitoring and submetering applications. With a 10mm round window and 333mV (0.33V) voltage output, it provides a safe and accurate way to measure current in low-voltage electrical panels without interrupting the circuit.
Key Features:
• Split core design opens and clamps around existing cables — no need to disconnect wiring during installation
• 10mm round window fits standard conductor sizes for residential and light commercial panels
• 333mV output compatible with most energy meters, data loggers and IoT monitoring devices
• 50A primary rating with 1% accuracy class for reliable metering
• UL recognized, CE and RoHS compliant
• 1m twisted-pair lead wire with UL1015 24AWG insulation for easy connection
Typical Applications:
• Energy monitoring systems and submetering installations
• Building management systems (BMS) and IoT energy platforms
• Smart meter current sensing
• Load profiling and power quality analysis
• Retrofit metering in existing electrical panels
Electrical Specifications:
Primary Current: 50A
Output Signal: 333mV (0.33V)
Window Size: 10mm (round)
Accuracy: 1%
Operating Frequency: 50/60Hz
Lead Wire: 1m, UL1015 24AWG, twisted pair
