FSCT-50
Jiangyin Spark
8504
Description

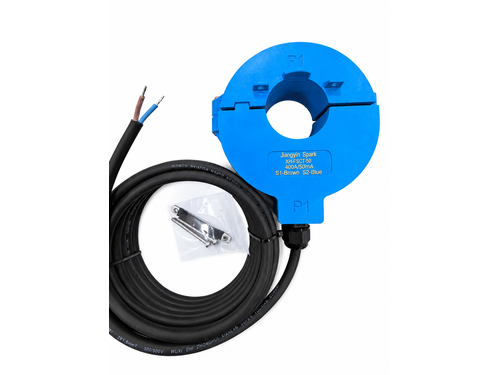

The FSCT50 is an IP67 waterproof split core current transformer designed for outdoor current measurement, power monitoring and energy management applications.
Featuring a 50mm window, the FSCT50 supports primary current ratings from 600A to 1500A with 1A or 5A secondary output. The split-core design allows quick installation around existing cables without disconnecting the primary conductor, making it ideal for retrofit and outdoor electrical installations.
Features
Primary current: 600A–1500A
Secondary output: 1A or 5A
Window size: 50mm
Protection rating: IP67
Rated frequency: 50/60Hz
Voltage level: 0.66/0.72kV
Withstand voltage: 3kV / 1mA / 1min
Operating temperature: -40°C to +70°C
Operating humidity: ≤95%
Split-core design for easy installation
Suitable for outdoor applications
Secondary cable length can be customized
Compliant with IEC 61869-1
Compliant with EN 61869-1 and EN 61869-2
| Current Ratio | Accuracy Class | Rated Load |
|---|---|---|
| 600A/5A | 0.5 | 2.5VA |
| 800A/5A | 0.5 | 2.5VA |
| 1000A/5A | 0.5S | 5VA |
| 1200A/5A | 0.5S | 5VA |
| 1500A/5A | 0.5S | 5VA |
| 600A/1A | 0.5 | 2.5VA |
| 800A/1A | 0.5 | 2.5VA |
| 1000A/1A | 0.5S | 5VA |
| 1200A/1A | 0.5S | 5VA |
| 1500A/1A | 0.5S | 5VA |
