RCT-600A/1A

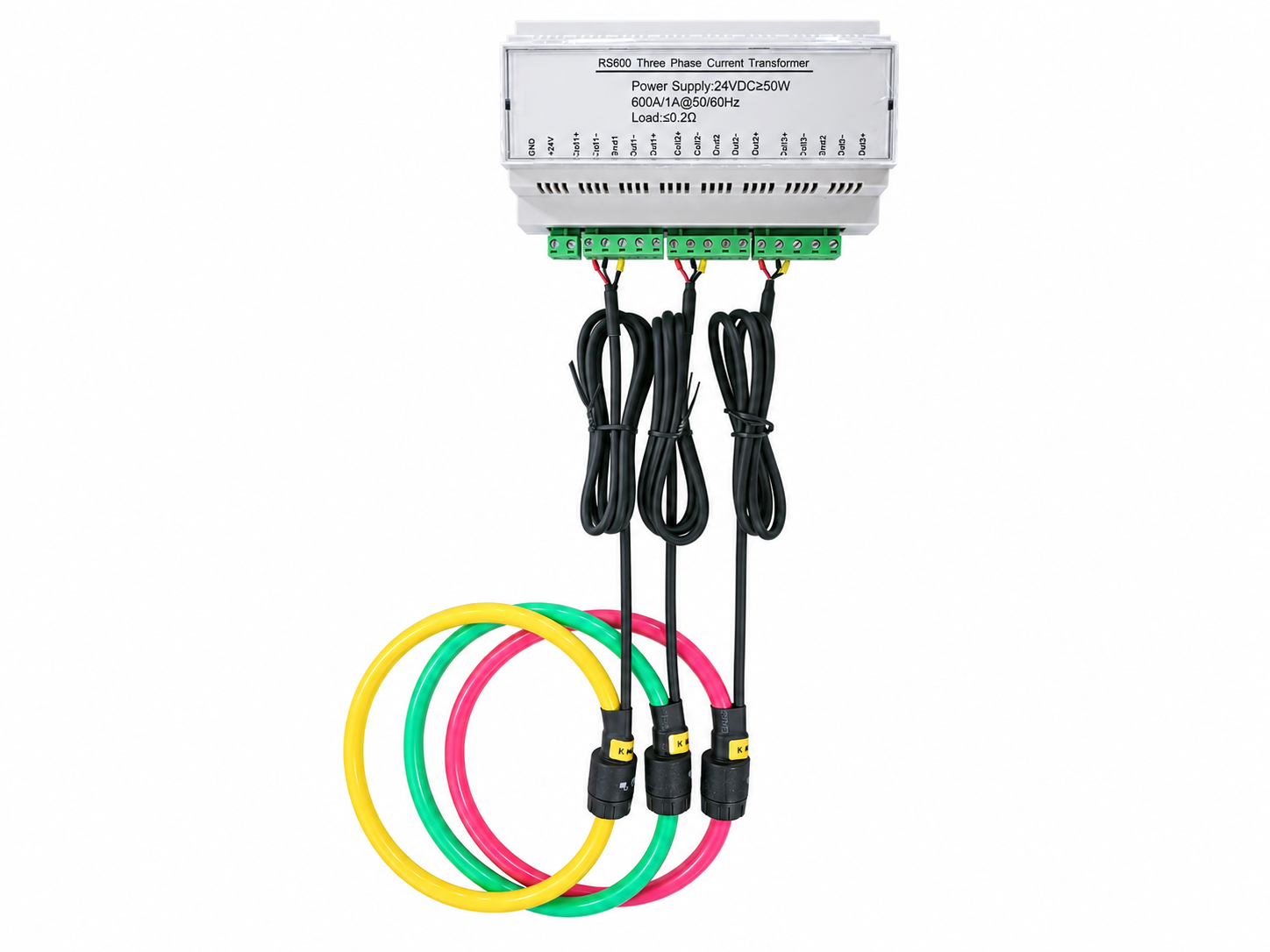

600A/1A Three-Phase Flexible Rogowski Coil with Integrator
Product Overview
The 600A/1A three-phase flexible Rogowski coil system combines three flexible current sensors with a matched integrator for 50/60Hz AC current measurement. Each channel provides a rated 1A AC output at a primary current of 600A, allowing connection to compatible energy meters and power monitoring instruments with 1A current inputs.
The flexible, openable coils fit around existing cables and busbars, making the system a practical solution for retrofit metering and current monitoring in electrical distribution panels.
Key Features
Three-phase measurement: Three flexible coils and a matched three-channel integrator monitor the current in each phase.
600A/1A current ratio: Rated 1A AC output per channel at 600A primary current.
Flexible installation: Openable coils simplify fitting around cables and busbars.
Air-core sensing: The Rogowski coils contain no magnetic core, avoiding magnetic core saturation.
Meter integration: Designed for compatible power meters and energy meters with 1A AC current inputs.
Terminal connections: Screw terminals provide connections for the power supply, coil signals and current outputs.
Technical Specifications
Parameter | Specification |
|---|---|
Model | RS600 |
Measurement configuration | Three-phase |
Rated primary current | 600A AC per phase |
Rated output current | 1A AC per channel |
Rated current ratio | 600A/1A |
Operating frequency | 50/60Hz |
Supply voltage | 24VDC |
Required power supply rating | ≥50W |
Output load resistance | ≤0.2Ω |
Sensor type | Flexible air-core Rogowski coil |
Signal conditioning | Matched three-channel integrator |
Meter compatibility should be checked against the 1A input rating and the specified output load resistance.
Typical Applications
Three-phase energy metering
Industrial power monitoring
Commercial building energy monitoring
Retrofit metering in distribution panels
Energy management systems using compatible power meters
Ordering Information
Please provide your meter model, required coil diameter, cable length and quantity. Contact Jiangyin Spark for product selection, sample arrangements and a quotation.
