FSCT-60
Jiangyin Spark
8504
Description
FSCT60 is an IP67 waterproof split core current transformer designed for outdoor current measurement and power monitoring applications.
It features a 60mm window and supports primary current ratings from 600A to 3000A with 1A or 5A secondary output. The split-core design allows installation around existing cables without disconnecting the primary conductor.
Features
Primary current: 600A–3000A
Secondary output: 1A or 5A
Window size: 60mm
Protection rating: IP67
Rated frequency: 50/60Hz
Voltage level: 0.66/0.72kV
Operating temperature: -40°C to +70°C
Split-core design for easy installation
Suitable for outdoor applications
Custom secondary cable length available
Compliant with IEC 61869-1 and EN 61869-1 / EN 61869-2

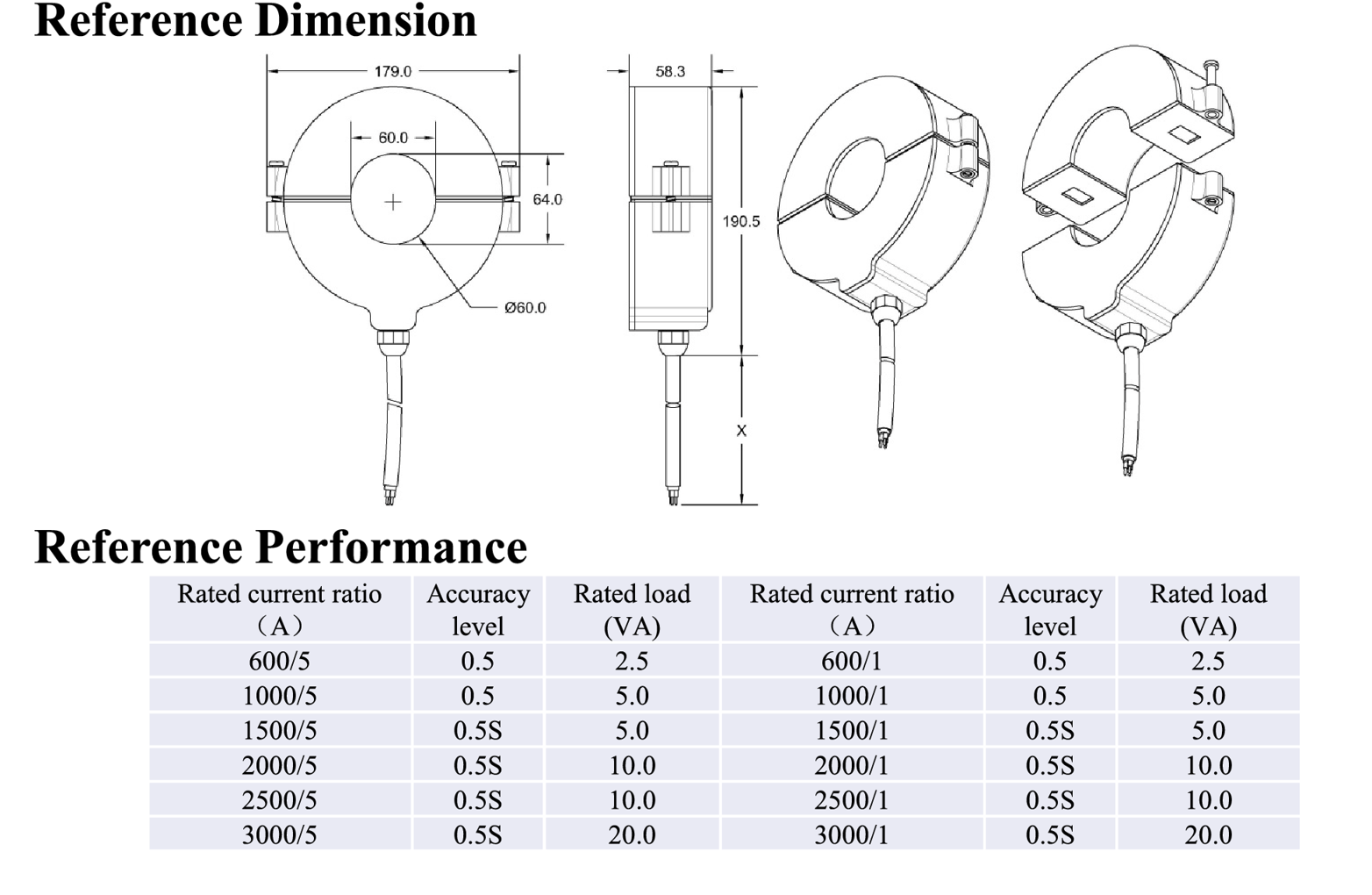

Available Current Ratios
600A/5A, 1000A/5A, 1500A/5A, 2000A/5A, 2500A/5A, 3000A/5A
600A/1A, 1000A/1A, 1500A/1A, 2000A/1A, 2500A/1A, 3000A/1A
Accuracy class and rated load vary depending on the selected current ratio.
Applications
Suitable for outdoor power monitoring, electrical distribution systems, industrial equipment, energy management systems and high-current cable measurement.
Customization
Custom current ratios, 1A/5A secondary outputs and secondary cable lengths are available for OEM projects. Please contact us with your required current ratio, accuracy class, rated load and cable length.
