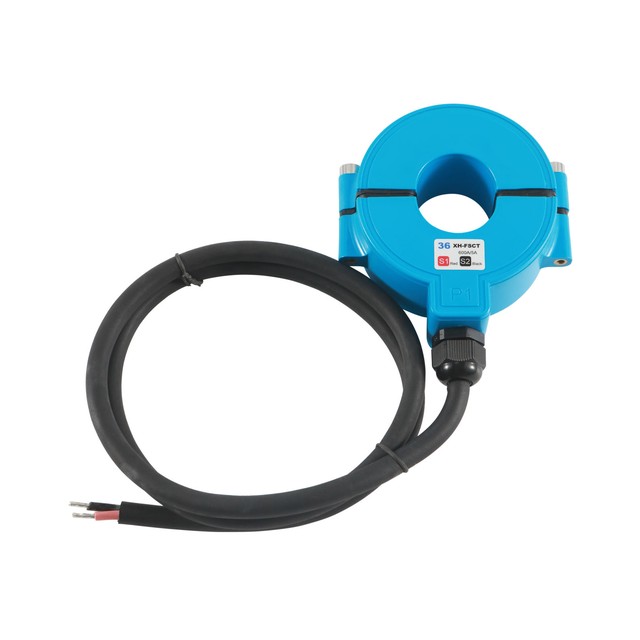

600A/5A Outdoor Split Core Current Transformer – FSCT36
The FSCT36 600A/5A Outdoor Split Core Current Transformer is designed for AC current measurement in outdoor electrical systems and retrofit power monitoring applications.
Featuring a 36mm window, Class 0.5 accuracy, 2.5VA rated load and IP67 protection, the FSCT36 can be easily installed around existing cables without disconnecting the conductor. It is suitable for energy monitoring, power metering, electrical distribution and industrial current measurement.
Key Specifications
Model: FSCT36
Rated Current Ratio: 600A/5A
Accuracy Class: 0.5
Rated Load: 2.5VA
Window Diameter: 36mm
Rated Frequency: 50/60Hz
Protection Rating: IP67
Operating Temperature: -40°C to +70°C
Voltage Level: 0.66/0.72kV
Installation: Split Core / Openable

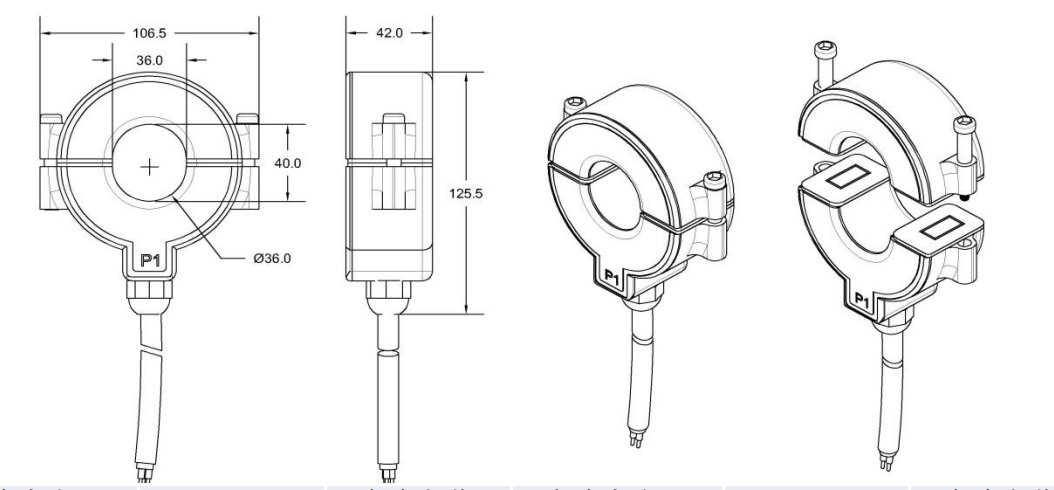

Dimensions
Key Features
600A/5A current ratio with Class 0.5 accuracy
IP67 protection for outdoor applications
36mm window for power cables
Easy split-core installation
No need to disconnect the conductor
Suitable for retrofit power monitoring
1A or 5A secondary output options available
Custom lead wire length available
Applications
Outdoor power monitoring
Energy meters and monitoring systems
Electrical distribution panels
Industrial power monitoring
Building energy management systems
Retrofit current measurement
Solar PV power monitoring
Available Current Ratios
The FSCT36 series supports 100A to 600A primary current with 1A or 5A secondary output. Accuracy and rated load vary according to the selected current ratio.
Why Choose Jiangyin Spark?
Jiangyin Spark Electronic provides split core current transformers and Rogowski coils for energy monitoring and power measurement applications. Different current ratios and lead wire lengths can be customized according to your project requirements.
Contact us for datasheets, samples, quotations or customized FSCT36 current transformer solutions.
