RCT-1000A/120mV
Jiangyin Spark

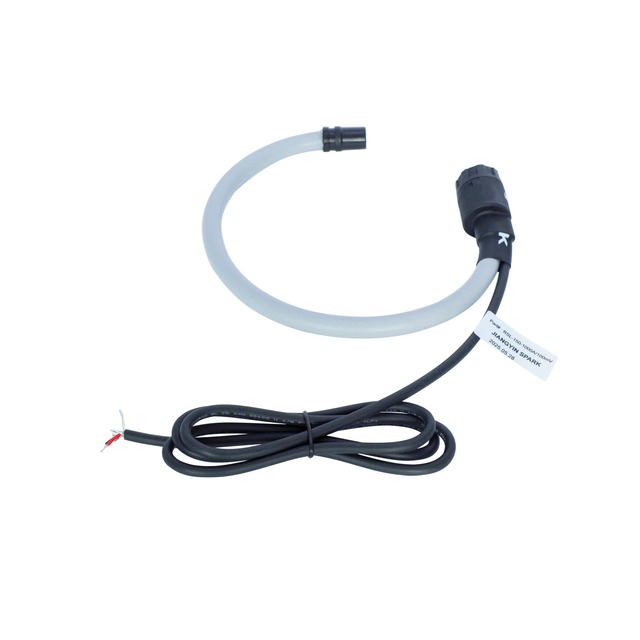

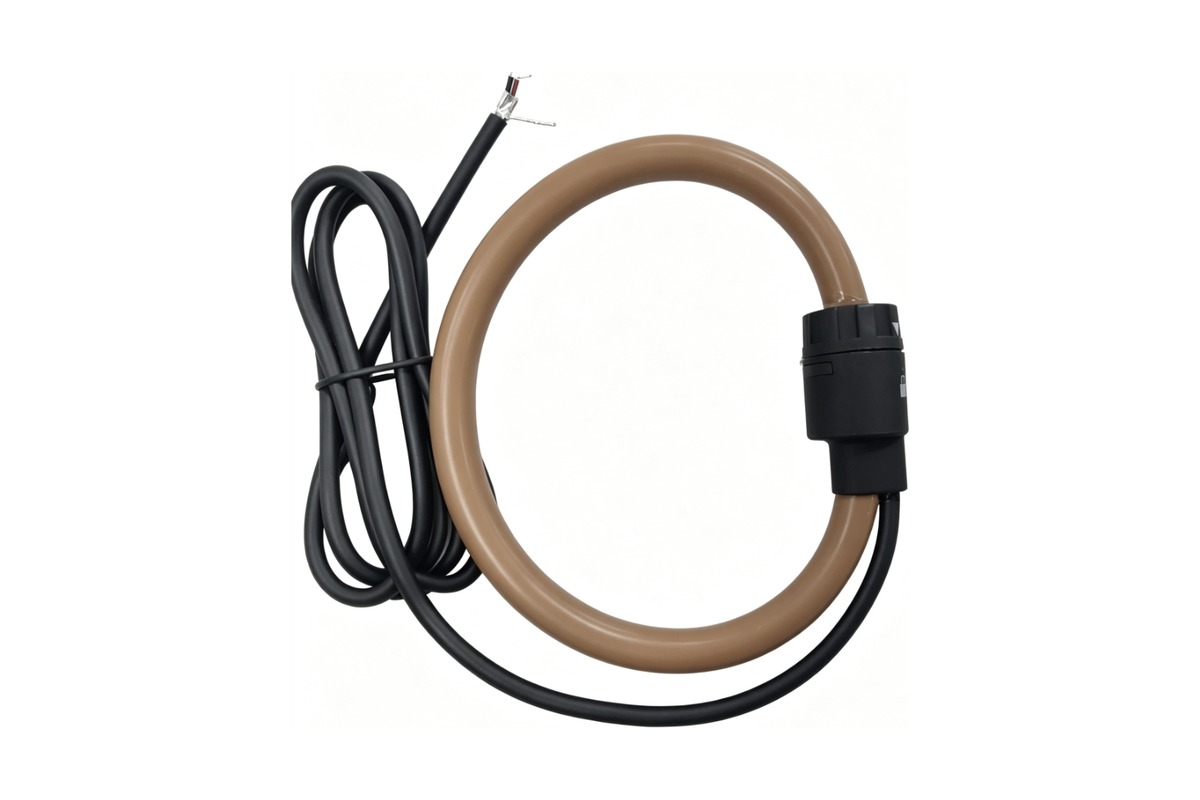

1000A/120mV Flexible Rogowski Coil – 60Hz
The 1000A/120mV Flexible Rogowski Coil is designed for accurate AC current measurement in 60Hz power systems. With a rated input of 1000A AC and a 120mV output at 60Hz, it is suitable for energy monitoring, power metering, electrical panels, solar energy systems, energy storage systems (ESS), and industrial power monitoring.
Unlike conventional current transformers, the flexible Rogowski coil can be easily opened and installed around existing cables or busbars without disconnecting the conductor. Its flexible and lightweight design makes it especially suitable for retrofit installations, large conductors, and locations where traditional split core current transformers are difficult to install.
Key Specifications
Rated Input: 1000A AC
Rated Output: 120mV @ 1000A, 60Hz
Rated Frequency: 60Hz
Sensor Type: Flexible Rogowski Coil
Installation: Openable / Flexible
Application: AC Current Measurement
Custom Coil Size: Available
Custom Lead Wire Length: Available
OEM / ODM: Available
Key Features
• Designed for 60Hz AC power systems
• 1000A current measurement with 120mV output
• Flexible and easy to install around existing conductors
• No need to disconnect cables during installation
• Suitable for large cables and busbars
• Lightweight design for retrofit power monitoring
• Customized coil diameter and lead wire length available
Applications
The 1000A/120mV 60Hz Rogowski coil can be used in:
• Energy monitoring systems
• Power meters and submeters
• Electrical distribution panels
• Solar PV monitoring systems
• Energy storage systems (ESS)
• Industrial power monitoring
• Building energy management systems
• Retrofit current measurement
Why Choose Jiangyin Spark?
Jiangyin Spark Electronic specializes in current measurement solutions including flexible Rogowski coils and split core current transformers. Different current ratings, output signals, coil sizes and lead wire lengths can be customized according to your application.
For 1000A AC current measurement in a 60Hz system, this 1000A/120mV flexible Rogowski coil provides a convenient solution for retrofit installation and power monitoring.
