KCT812
Jiangyin Spark

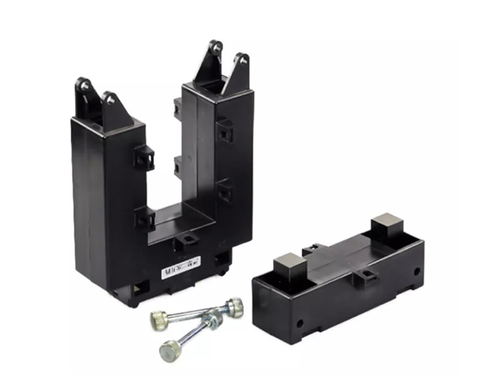

The KCT812 split core busbar current transformer is designed for high-current measurement in switchgear, distribution panels, power meters and industrial energy monitoring systems.
The series covers 400A to 1500A primary current with 5A secondary output, featuring Class 0.5 accuracy and a split-core structure for convenient retrofit installation without removing the existing busbar.
Primary current: 400A-1500A
Secondary output: 5A
1A output also available
Accuracy: Class 0.5
Rated burden: 2.5VA / 5VA
Frequency: 50/60Hz
Split-core busbar design
Suitable for 80mm / 120mm busbars
Easy retrofit installation
CE compliant
Custom ratio and specifications available
Primary / Secondary | Accuracy | Rated Load |
|---|---|---|
400A / 5A | Class 0.5 | 2.5VA |
600A / 5A | Class 0.5 | 2.5VA |
800A / 5A | Class 0.5 | 5VA |
1000A / 5A | Class 0.5 | 5VA |
1200A / 5A | Class 0.5 | 5VA |
1500A / 5A | Class 0.5 | 5VA |
