XH-SCT2000-1000A/333mV

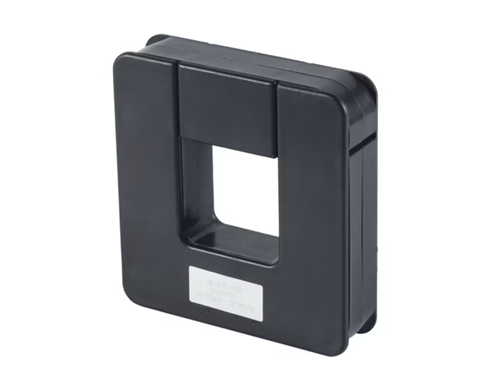

The SCT2000 1000A/333mV Split Core Current Transformer is designed for safe, fast and convenient AC current measurement in energy monitoring, power management and building automation systems.
Its split-core design allows installation around an existing conductor without disconnecting the primary cable, making it especially suitable for retrofit projects and electrical systems where shutdown is difficult.
A built-in precision burden resistor provides a safe 333mV low-voltage output, allowing direct connection to compatible energy meters, power monitoring devices, data acquisition systems and building management equipment.
Split-core design for quick and easy installation
Rated primary current: 1000A AC
Rated output: 333mV AC
Safe low-voltage output
No need to disconnect the primary conductor during installation
Suitable for retrofit energy monitoring applications
Compact and portable design
Output ratio, lead length and connector can be customized
UL & CE options available
RoHS compliant
Parameter | Specification |
|---|---|
Model | SCT2000 |
Rated Primary Current | 1000A AC |
Rated Output | 333mV AC |
Accuracy | ±0.5% from 5% to 120% of rated current |
Phase Angle | Less than 2° at 50% rated current |
Insulation Voltage | 600Vac |
Maximum Primary Voltage | 5000Vac, insulated conductor |
Frequency Range | 50–400Hz |
Operating Temperature | -15°C to +60°C |
Standard Lead | Approx. 1.05m |
Lead Wire | UL1015 twisted pair, 22AWG |
Compliance | UL / CE / RoHS |
Customization | Output, lead length and connector available |
The SCT2000 1000A/333mV split-core CT is suitable for measuring AC current in:
Energy monitoring systems
Power monitoring systems
Smart meters and sub-metering systems
Building automation systems
Building Management Systems (BMS)
HVAC energy monitoring
Industrial electrical equipment
Electrical distribution panels
Motors and large electrical loads
Solar and renewable energy monitoring
Data acquisition systems
Retrofit power monitoring projects
Jiangyin Spark manufactures split-core current transformers with rated currents from 5A to 3000A and supports customized current ratios, output signals, lead lengths and connectors.
Besides 333mV output, mA, 1A, 5A and other low-voltage outputs can also be customized according to the customer's energy meter or monitoring equipment.
For samples, datasheets or customized specifications, please contact Jiangyin Spark.
