RSCT-5A
Jiangyin Spark

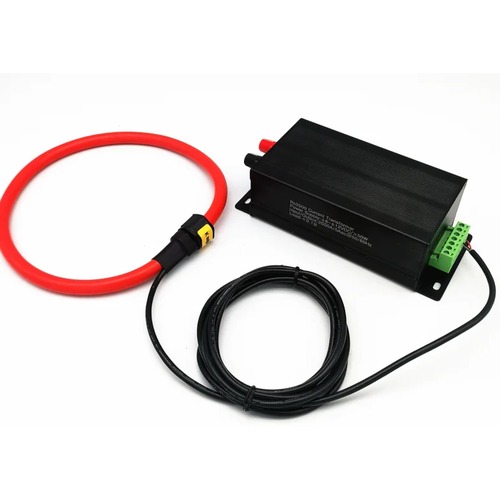

The Single Phase Rogowski Coil with 5A AC Outputis designed for high AC current measurement and connection to power meters or measuring instruments with a standard 5A input.
The flexible coil allows easy installation around existing cables and busbars. Primary current, coil size and lead length can be customized for different applications.
Standard 5A AC output
Flexible and easy installation
Suitable for high AC current measurement
High accuracy and good linearity
Custom current ratio available
Custom coil size and lead length
| Primary Current | Up to 10000A AC |
| Rated Output | 5A AC |
| Measurement Range | 5%–120% |
| Frequency | 45–65Hz |
| Accuracy | ≤1% |
| Linearity | ≤1% FS |
| Phase Error | ≤40′ |
| Response Time | ≤20ms |
| Supply Voltage | ±8VDC |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
1000A/5A · 2000A/5A · 3000A/5A· 4000A/5A· 5000A/5A
Other primary current ranges can be customized according to customer requirements.
Energy meters and power meters
Power monitoring systems
Industrial current measurement
Electrical distribution systems
Large cables and busbars

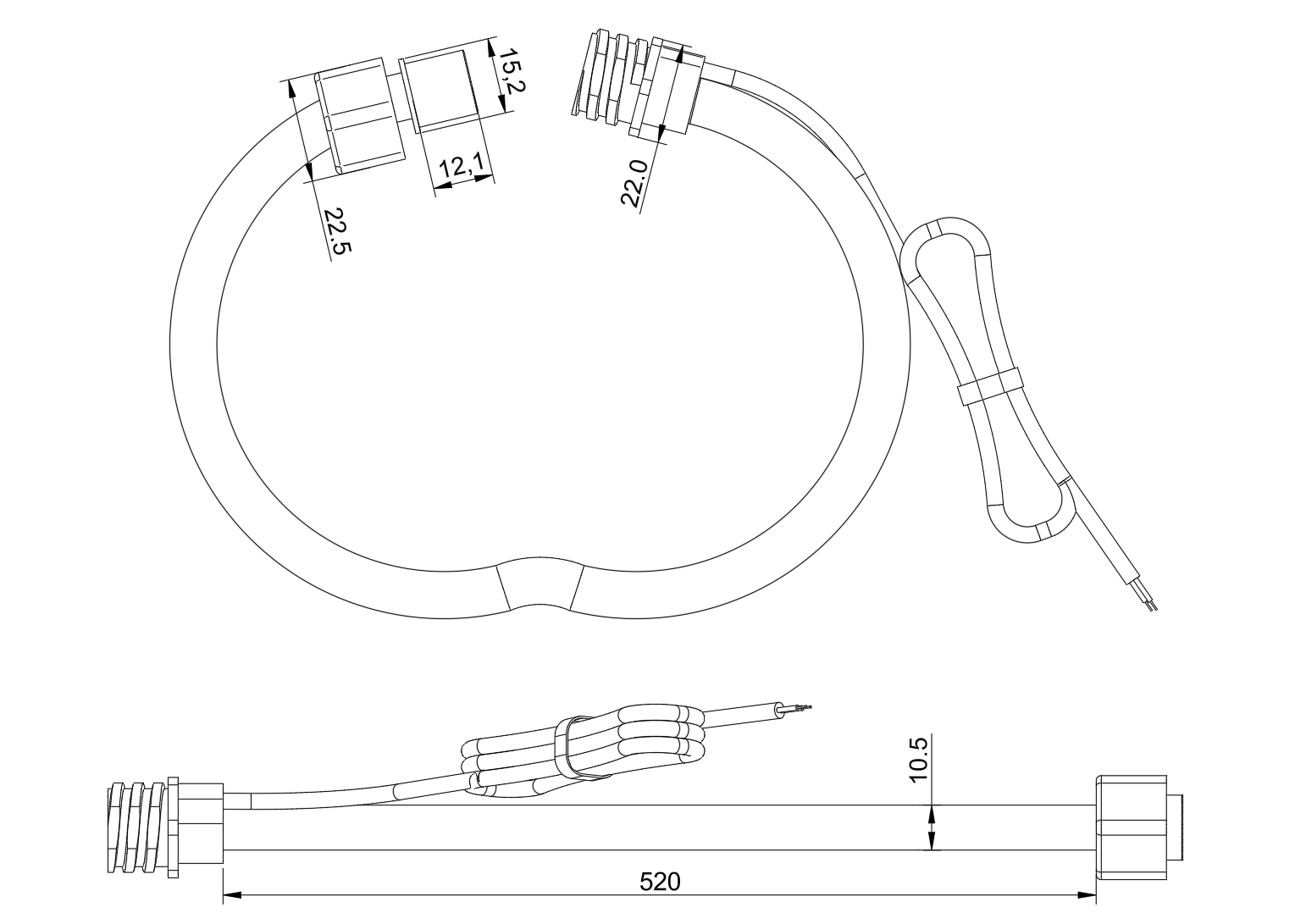

Primary current, 5A AC output, Rogowski coil diameter and lead length can be customized.
