RCT-1000A/100mV
Jiangyin Spark

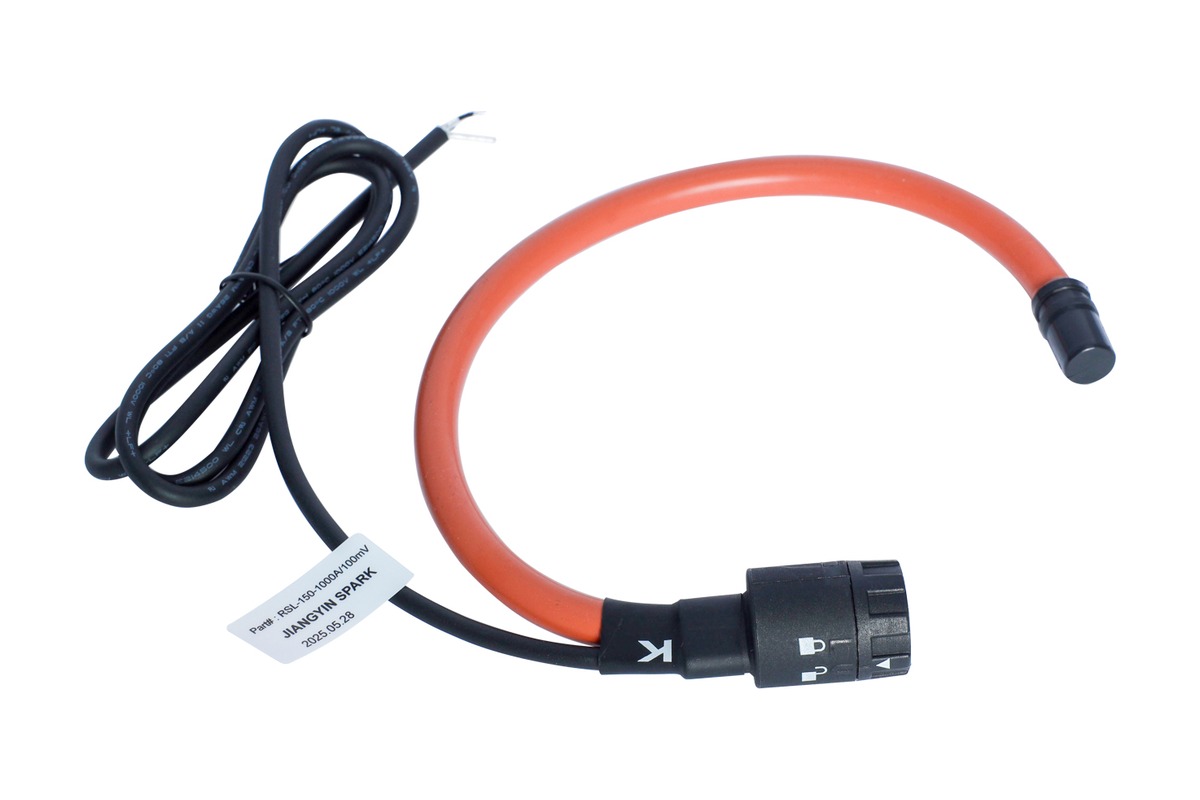

The RCT-1000A/100mV UL Certified Rogowski Coil is designed for Fault Passage Indicators (FPI), fault detection systems and AC current measurement in power distribution networks.
The flexible split-core coil can be easily installed around cables or conductors without disconnecting the circuit. With a nominal current of 1000A, 100mV output and accuracy up to ±1%, it provides a reliable current sensing signal for fault indication and power monitoring equipment.
The coil is available without an integrator, making it suitable for fault indicators and monitoring devices with their own signal processing circuitry. Its IP67-rated design supports outdoor and demanding electrical applications.
Key Features:
UL certified Rogowski coil
Designed for Fault Passage Indicators (FPI)
1000A nominal current / 100mV output
Accuracy up to ±1%
Flexible split-core design
No integrator required for compatible monitoring devices
IP67 protection for outdoor applications
Easy installation without disconnecting the conductor
Custom coil size, cable length, current rating and output available
Typical Applications:
Fault Passage Indicators (FPI)
Overhead and underground distribution networks
Feeder fault monitoring
Power distribution equipment
AC current sensing
Smart grid monitoring
Renewable energy power systems
