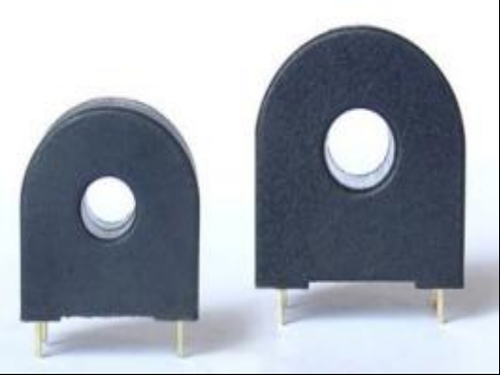

WCTCA 10A PCB Mount Precision Current Transformer Class 0.1

Description

The WCTCA series precision current transformer is designed for PCB mounting and accurate AC current measurement. It features a compact, low-profile design, high accuracy, wide linear measurement range and low phase shift.

With Class 0.1 accuracy, high insulation resistance and a flame-retardant housing, the WCTCA series is suitable for electronic energy meters, precision power meters, power transducers and other power monitoring equipment.

Different turns ratios and secondary burden options are available, and customized specifications can be provided according to customer requirements.

Features

• Compact and low-profile design for PCB mounting

• Accuracy Class: 0.1

• High measurement accuracy

• Wide linear current range

• Low phase shift error

• Flame-retardant housing and filling material

• High insulation resistance

• 50–400Hz operating frequency

• RoHS compliant

• CE approved

• Customized turns ratio and electrical specifications available

Specifications

Typical Models
