XH-SCT-S24-200A/40mA
Jiangyin Spark

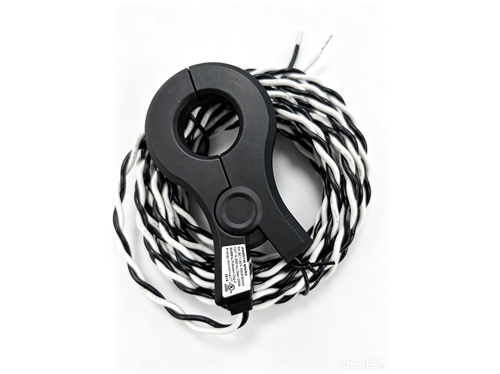

The XH-SCT-S24 is a slim split core current transformer designed for AC current measurement and energy monitoring applications.
Featuring a 24mm cable opening, 200A/40mA AC ratio and a compact clamp-on design, it allows easy installation around existing conductors without disconnecting cables.
The S24 series is listed in the product datasheet under UL 2808 (XOBA), with model-specific recognition details available upon request.
200A AC input / 40mA AC output
UL 2808 (XOBA) listed in product documentation
24mm cable opening
Slim split-core clamp design
±0.5% specified accuracy
50/60Hz operation
Easy installation for retrofit applications
Custom cable lengths available
| Specification | Value |
|---|---|
| Model | XH-SCT-S24 |
| Rated Primary Current | 200A AC |
| Rated Secondary Output | 40mA AC |
| Accuracy | ±0.5% (1%–100% of rated current) |
| Frequency | 50/60Hz |
| Maximum Continuous Current | 300A |
| Window Diameter | 24mm |
| Design | Slim Split Core |
| Lead Wire | 20 AWG, Twisted Pair |
| Standard Cable Length | 2.4m |
| Housing Material | Polycarbonate |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 5%–90% RH |
| Protection Rating | IP30 |
| Weight | Approx. 190g |
| UL Standard | UL 2808 (XOBA) |
Energy Monitoring Systems
Smart Meters and Submetering
Industrial Power Measurement
Load Centers and Distribution Panels
Three-Phase Load Monitoring
Solar and Wind Power Monitoring
Jiangyin Spark offers customized current ratios, cable lengths and connection options for compatible applications.
Contact us for datasheets, available test reports, samples and quotations.
