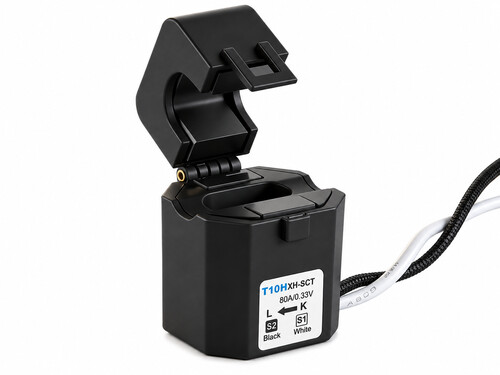

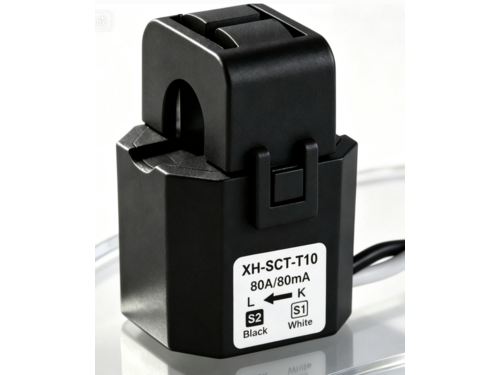

XH-SCT-T10 10mm Split Core Current Transformer
The XH-SCT-T10 series is a compact split-core current transformer designed for AC current measurement from 5A to 80A. Its clamp-on design allows quick installation around existing cables without disconnecting the conductor, making it ideal for retrofit electrical systems. The series is available with mA or 333mV (0.333V) output for energy meters, submetering devices, data loggers and power monitoring equipment. Different current ratings, accuracy levels, cable lengths and connectors can be customized for OEM projects.
Key Features
• 10mm conductor opening
• Rated current from 5A to 80A AC
• mA or 333mV output options
• Compact split-core design
• Easy installation without cable disconnection
• Customized lead wire and connector available
Item | Specification |
Model | XH-SCT-T10 |
Type | Split-Core Current Transformer |
Aperture | 10 mm |
Primary Current | 5A–80A AC |
Output | 333mV (0.333V) or mA |
Lead Wire | 24 AWG black jacketed cable |
Cable Length | Customization |
Installation | Clamp-on installation, no cable disconnection |
Applications | Energy monitoring, power metering, EV charging and solar systems |
