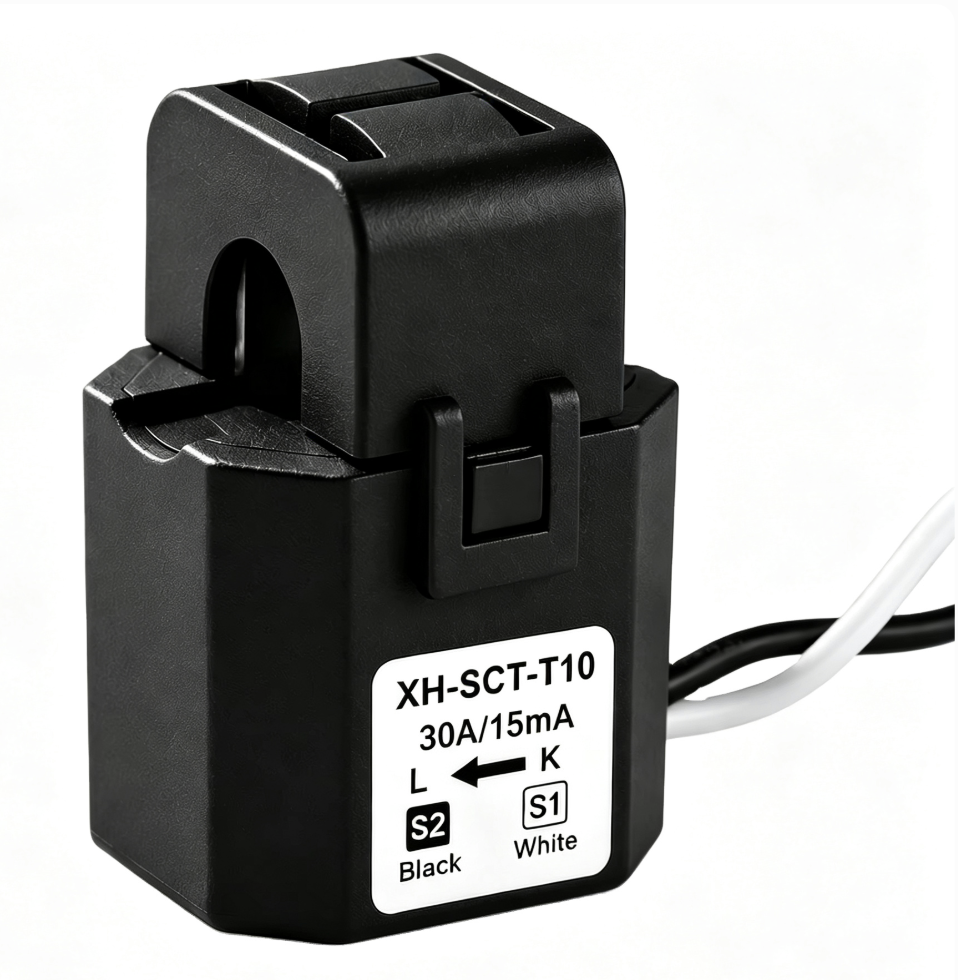

The XH-SCT-T10 is a compact openable split core current transformer with a 30A/15mA ratio, designed for low-voltage AC measurement and monitoring. Its clamp-on split core allows direct mounting on existing cables without circuit disconnection or wire cutting, simplifying installation for retrofits and on-site maintenance.
SPECIFICATIONS
Rated current: 30A
Rated output: 15mA
Insulation Voltage: 3KV
Rated Frequency: 50Hz/60Hz
Operating Temperature: -15℃ to 60℃
Flame resistance: UL94-V0
Accuracy Class: 1.0
Certificates: CE, UL
FEATURES
Cost-effective
Split core design for easier installation
Built-in diode to avoid high voltage risk
Excellent linearity at low current
DIMENSIONS( mm ):
