XH-SCT-T10-30A/333mV
Jiangyin Spark
Product Overview

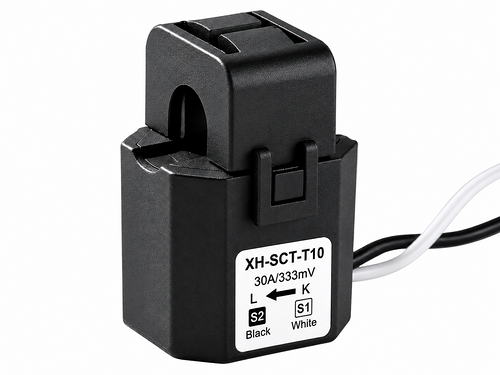

The XH-SCT-T10 is a compact 30A/333mV split-core current transformer designed for AC current measurement in energy monitoring and control systems. Its 10mm window fits small conductors and confined electrical panels.
The split-core structure allows the CT to be installed around an existing cable without disconnecting or rewiring the circuit. A built-in burden resistor provides a safe, low-level 333mV output for compatible meters, monitoring devices and controllers.
Key Features
• 30A AC rated primary current
• 333mV AC rated output
• Built-in burden resistor
• Compact 10mm window
• Fast split-core installation
• No conductor disconnection required
• Suitable for 50/60Hz AC systems
• Custom cable length and connector available
Typical Applications
• Energy monitoring and submetering
• Building energy management systems
• HVAC equipment monitoring
• Smart meters and data loggers
• Solar and EV charging equipment
• Industrial control and power monitoring
• Retrofit electrical installations
