XH-SCT-T10-50A/40mA
Jiangyin Spark
Product Description

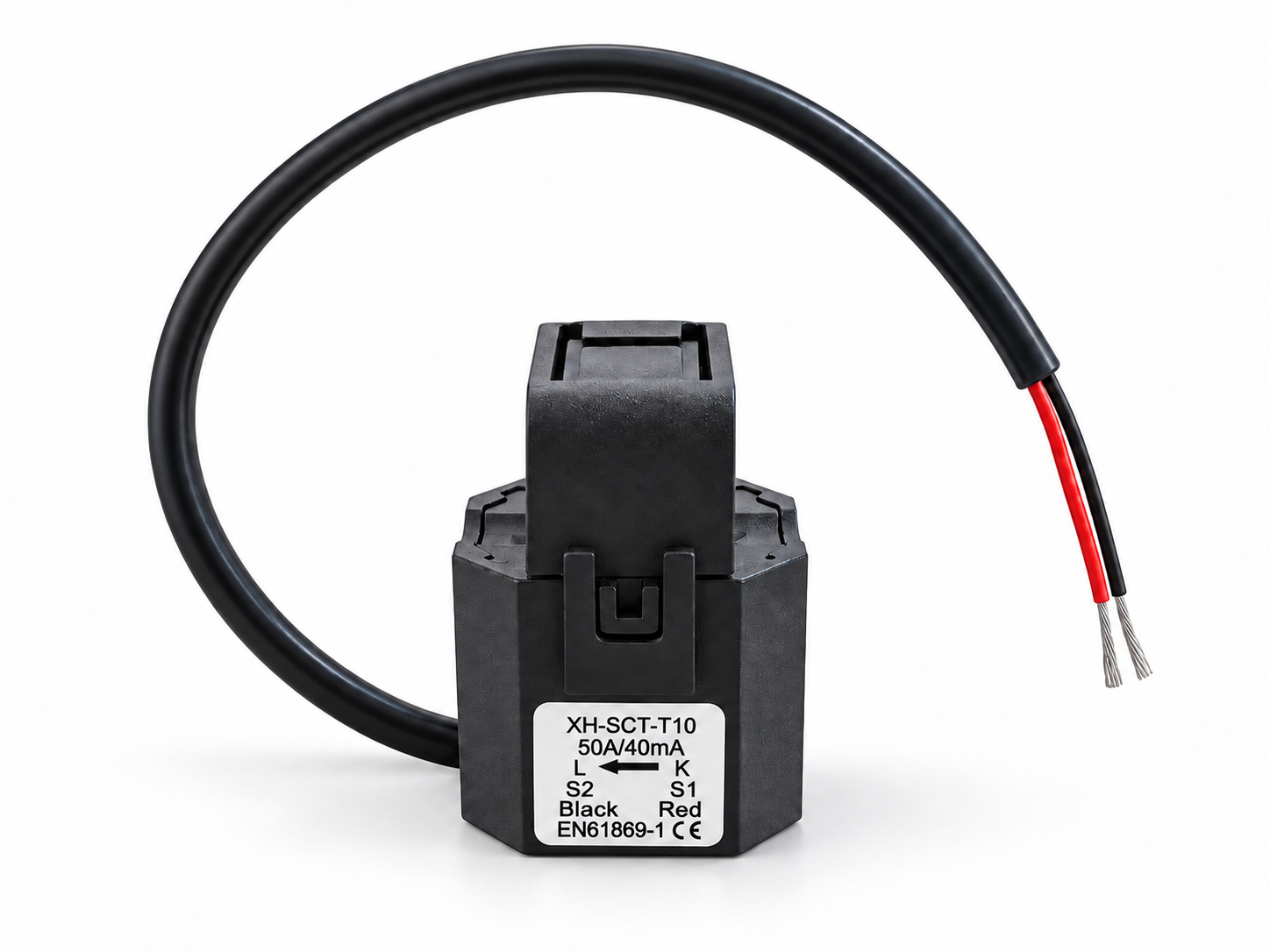

XH-SCT-T10 50A/40mA Split Core Current Transformer is a compact current sensing solution designed for AC current measurement in energy meters, power monitoring systems, BMS, HVAC controls and retrofit applications.
With a 10mm cable aperture and 50A/40mA current output, the split-core design allows quick installation around existing conductors without disconnecting the cable.
The transformer uses a flame-retardant nylon housing and supports customized lead length, connector and labeling. Jiangyin Spark has specialized in current transformer manufacturing since 1995 and can provide customized solutions for OEM meter and monitoring equipment manufacturers.
Features
• Rated primary current: 50A AC
• Secondary output: 40mA
• Compact 10mm cable aperture
• Split-core design for easy installation
• No need to disconnect the primary conductor
• Rated frequency: 50/60Hz
• Operating temperature: -40°C to +55°C
• Operating humidity: ≤95%
• Flame-retardant nylon housing, UL94-V0
• mA and mV output versions available
• Lead length and connector can be customized
• OEM / private-label service available
• CE, UKCA and UL certified options available
| Parameter | Specification |
|---|---|
| Model | XH-SCT-T10 |
| Product Type | Split Core Current Transformer |
| Rated Primary Current | 50A AC |
| Secondary Output | 40mA |
| Current Ratio | 50A / 40mA |
| Turns Ratio | 1250:1 |
| Cable Aperture | Ø10mm |
| Rated Frequency | 50/60Hz |
| Operating Temperature | -40°C to +55°C |
| Operating Humidity | ≤95% |
| Housing Material | Flame-retardant Nylon |
| Flammability Rating | UL94-V0 |
| Installation | Split Core / Clamp-on |
| Lead Type | Twisted wire or sheathed cable available |
| Lead Length | Customizable |
| Connector | Customizable |
| Other Outputs | mA or mV available |
| OEM / ODM | Available |
