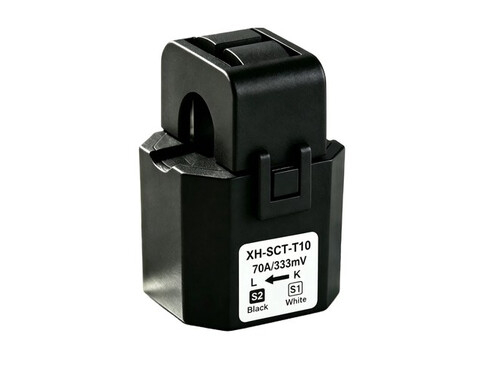

XH-SCT-T10 70A/333mV Split Core Current Transformer

70A/333mV Split Core Current Transformer

The XH-SCT-T10 is a compact split core current transformer designed for AC current measurement and energy monitoring. The split-core design allows quick installation around existing cables without disconnecting the conductor.

Features

• 70A AC rated current

• 333mV output

• Compact split-core design

• Easy retrofit installation

• Suitable for energy monitoring

• Compatible with SolarEdge Modbus meters

Specifications

• Model: XH-SCT-T10

• Rated Current: 70A AC

• Output: 333mV

• Accuracy: ±1%

• Linearity: ±1%

• Frequency: 50Hz–1kHz

• Operating Temperature: -25°C to +70°C

• Dielectric Strength: 6000V AC / 1 min

• Housing: UL94-V0

• Lead Wire: 1m

Applications

Energy meters, SolarEdge Modbus meters, power monitoring systems, solar energy systems and industrial AC current measurement.
