SCT-T16
Jiangyin Spark
100A/100mV Split Core Current Transformer

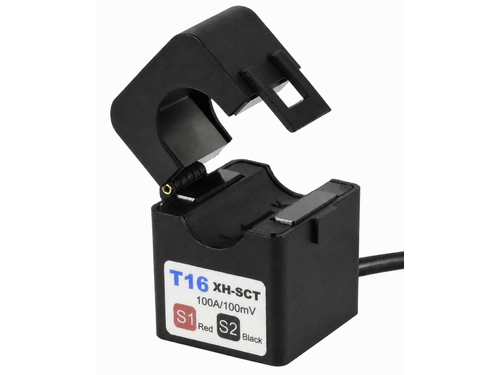

The XH-SCT-T16 is a compact split core current transformer designed for accurate AC current measurement in energy meters, submetering systems and power monitoring equipment.
Its hinged split-core design allows quick installation around an existing conductor without disconnecting the primary wire. The transformer provides a 100mV output at 100A AC and features a 16mm inner window with 2m twisted-pair leads.
Key Features
Rated input: 100A AC
Rated output: 100mV
Inner window size: 16mm
Accuracy: ≤1%
Compact split-core design
Fast installation without disconnecting the conductor
Low phase-angle error
Flame-retardant UL94 V-0 enclosure
Standard 1m UL1015 twisted-pair leads
Custom ratios, outputs, lead lengths and connectors available
Electrical Specifications
| Parameter | Specification |
|---|---|
| Rated input current | 100A AC |
| Rated output | 100mV |
| Frequency | 50/60Hz |
| Accuracy | ≤1% from 20% to 120% of rated current |
| Rated insulation voltage | 600V |
| Dielectric withstand voltage | 2.5kV AC, 1mA, 1 minute |
| Insulation resistance | ≥100MΩ at 500V DC |
| Phase angle | Less than 2° at 50% of rated current |
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Model | XH-SCT-T16 |
| Inner window | 16mm |
| Housing material | PA, UL94 V-0 |
| Core material | Permalloy |
| Internal insulation | Epoxy resin |
| Structure | Hinged split core |
| Operating temperature | -25°C to +75°C |
| Operating humidity | ≤85% RH |
| Output connection | UL1015, 20AWG twisted-pair wire |
| Standard lead length | 1m |
Typical Applications
Energy meters and power meters
Building energy submetering
Energy management systems
Industrial equipment monitoring
Solar and renewable energy systems
Retrofit power monitoring projects
Customization Available
Input current, output signal, accuracy, lead wire length and connector type can be customized. Contact us for samples, drawings or OEM requirements.
