XH-SCT-T16
Jiangyin Spark

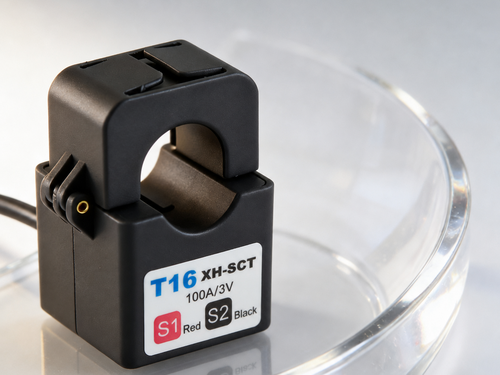

100A/3V Split Core Current Transformer
The XH-SCT-T16 is a compact 100A/3V split core current transformer with a 16mm window, designed for energy monitoring, submetering and power measurement.
Its hinged split-core design allows quick installation around an existing conductor without disconnecting the cable. The 3V voltage output is suitable for compatible energy meters, monitoring devices and OEM control systems.
Key Features
Rated input current: 100A AC
Rated output: 3V
Inner window size: 16mm
Accuracy: ≤1%
Compact split-core construction
Quick installation around existing conductors
Low phase-angle error
Flame-retardant UL94 V-0 housing
Standard 2m twisted-pair lead wires
Custom ratios, outputs, wire lengths and connectors available
Electrical Specifications
| Parameter | Specification |
|---|---|
| Model | XH-SCT-T16 |
| Rated input current | 100A AC |
| Rated output | 3V |
| Inner window | 16mm |
| Frequency | 50/60Hz |
| Accuracy | ≤1% from 20% to 120% of rated current |
| Rated insulation voltage | 600V |
| Dielectric withstand voltage | 2.5kV AC, 1 minute |
| Insulation resistance | ≥100MΩ at 500V DC |
| Phase angle | Less than 2° at 50% of rated current |
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Housing material | UL94 V-0 |
| Core material | Ferriete core |
| Structure | Hinged split core |
| Operating temperature | -25°C to +75°C |
| Operating humidity | ≤85% RH |
| Output connection | UL1015 20AWG twisted-pair wire |
| Standard lead length | 1m |
Typical Applications
Energy meters and power monitors
Building energy submetering
Energy management systems
Industrial equipment monitoring
Solar and renewable energy systems
OEM monitoring and control equipment
Retrofit current measurement projects
Easy Installation
The split-core structure allows the transformer to be fitted around an existing conductor without disconnecting the primary cable, helping reduce installation time in new and retrofit projects.
Customization Available
Input current, voltage output, accuracy, lead wire length and connector type can be customized. Contact us for samples, technical drawings or OEM requirements.
