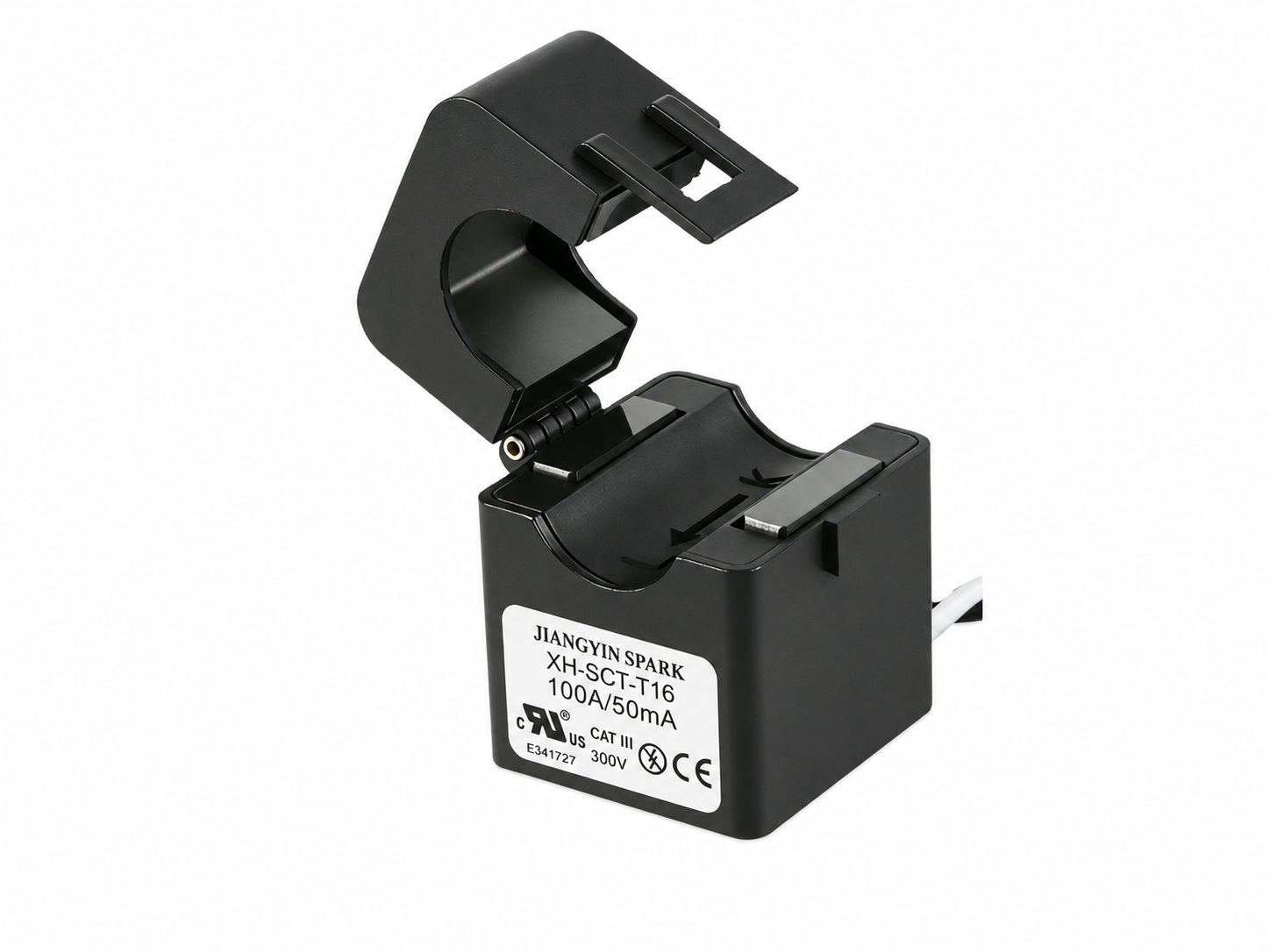

XH-SCT-T16-100A/50mA
Jiangyin Spark
The XH-SCT-T16 is a compact split-core current transformer designed for accurate AC current measurement. Its 16mm opening allows installation around existing cables without disconnecting the conductor, making it suitable for new equipment and retrofit projects.
The 100A/50mA ratio provides a 2000:1 current transformation ratio for connection to compatible energy meters, monitoring devices and data acquisition systems.
Rated primary current: 100A AC
Rated secondary output: 50mA AC
Current ratio: 2000:1
Cable aperture: 16mm
Frequency: 50/60Hz
Accuracy class: 0.5 or 1.0
DC winding resistance: 460Ω at 20°C
Lead wire: UL2464, 24AWG
Split-core construction for easy installation
UL recognized and CE marked
Custom lead lengths and connectors available
Model | I.D. | Ratio | Rated Amps | Rated output | Accuracy |
XH-SCT-T16 | 16mm | 2000:1 | 100A | 50mA | 1.0 |
Our main products:
Split Core Current Transformer, Split Core Current Sensor, Split Core Current Transducer, Clip on Current Sensor, Current Transformer Manufacturer, Split Core Cts Manufacturer, Current Sensor Manufacturer, Clamp on Current Transformer, AC Split Core Current Transformer, Flex Core Current Transformer

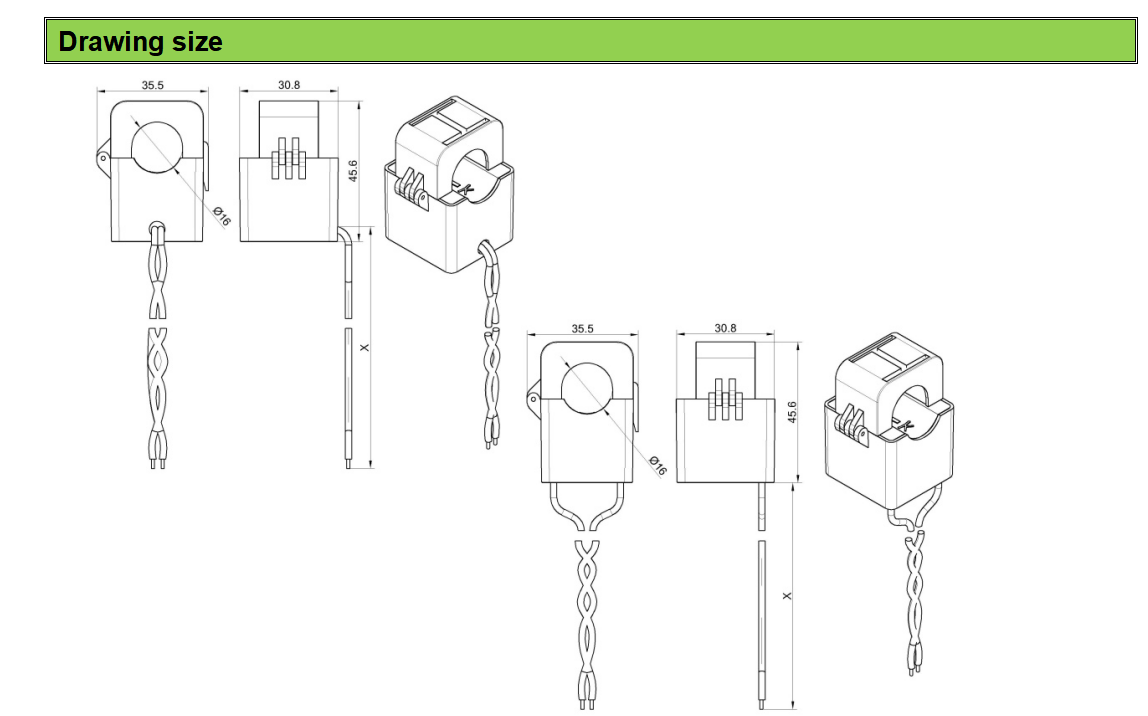

Drawing size
