XH-SCT-T16 100A/80mV Split Core Current Sensor
The XH-SCT-T16 is a compact voltage-output current sensor developed for OEM energy meters and monitoring devices that require an 80mV full-scale signal at 100A AC.

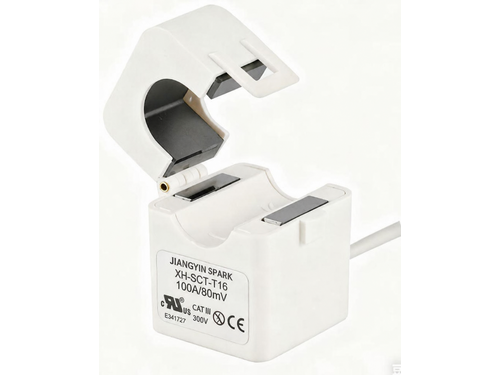

With a 16mm inner window and hinged housing, it can be fitted around an existing conductor without threading the cable through a solid core. Its compact size makes it particularly suitable for crowded meter panels, equipment enclosures and retrofit monitoring projects.
Product Highlights
100A AC input / 80mV output
Compact 16mm inner window
Accuracy up to ±1%
Suitable for compatible voltage-input meters
Hinged split-core structure
Low phase-angle error
Flame-retardant UL94 V-0 housing
Permalloy magnetic core
Standard 2m UL1015 twisted-pair leads
Customized wire lengths and connectors available
Technical Data
| Parameter | Specification |
|---|---|
| Model | XH-SCT-T16 |
| Rated input | 100A AC |
| Rated output | 80mV |
| Inner window | 16mm |
| Frequency | 50/60Hz |
| Accuracy | ≤1% from 20% to 120% of rated current |
| Phase angle | Less than 2° at 50% of rated current |
| Rated insulation voltage | 600V |
| Dielectric withstand voltage | 2.5kV AC for 1 minute |
| Insulation resistance | ≥100MΩ at 500V DC |
| Operating temperature | -25°C to +75°C |
| Lead wire | UL1015 20AWG twisted pair, 2m |
Recommended Applications
OEM energy meters
Building submetering systems
Power monitoring modules
Industrial equipment monitoring
Smart building controllers
Solar energy monitoring
Retrofit current measurement
