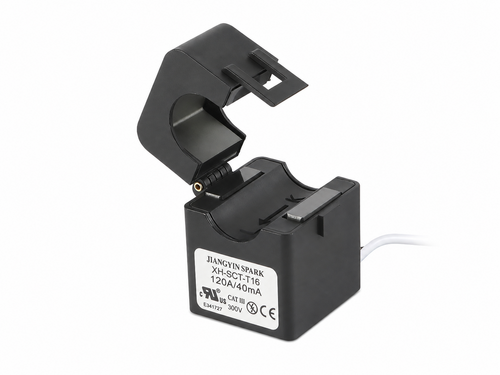

XH-SCT-T16 120A/40mA Split-Core Current Transformer

Split core current transformer with high quality and CE UL certification

Split Core Current Transformer mA Secondary OutputThe JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT

installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor

across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary

Specifications

Rated Current 5A to 120A loads.
Rated output: 40mA Vac
Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5000Vac(Insulated Conductor)
Operating Temperature:-15°Cto 60°C.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015(24AWG)
UL&CE,ETL recognized. RoHS Compliant
Output and leads can be customized

Application

Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
