XH-SCT-T16-50A/1V
Jiangyin Spark
8504
Product Overview

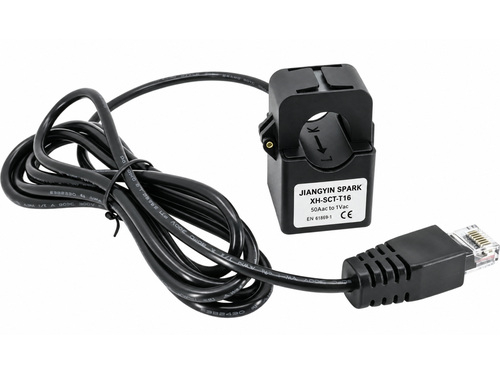

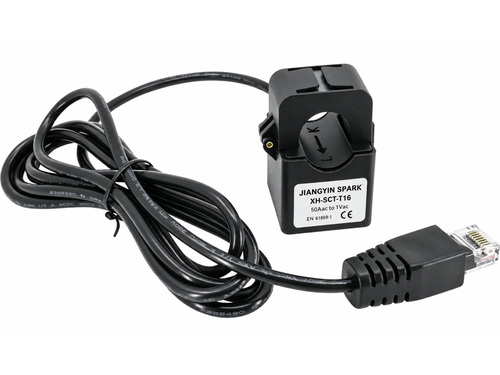

The XH-SCT-T16 is a compact split core current transformer featuring a 50A rated input, 1V voltage output, 16mm window and RJ45 connector. Its opening-core design allows quick installation around existing conductors without removing the cable, making it suitable for new installations and retrofit projects.
Key Features
50A rated AC current input
1V voltage output
16mm inner window
Split core design for easy installation
RJ45 connector for convenient connection
Compact housing for limited installation spaces
Suitable for energy monitoring and submetering systems
Typical Applications
Energy meters
Power monitoring systems
Building energy management
Submetering equipment
Smart electrical panels
Industrial equipment monitoring
Retrofit energy-monitoring projects
Basic Specifications
| Parameter | Specification |
|---|---|
| Model | XH-SCT-T16 |
| Rated Input | 50A AC |
| Rated Output | 1V AC |
| Window Size | 16mm |
| Core Type | Split Core |
| Connection | RJ45 Connector |
| Application | AC Current and Energy Monitoring |
