XH-SCT-T20-100A/333mV
Jiangyin Spark

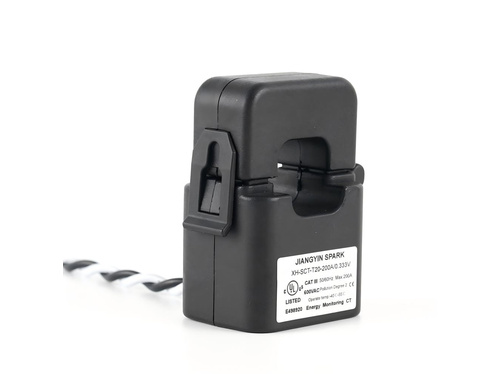

The XH-SCT-T20 100A/333mV Split Core Current Transformer is designed for AC current measurement in energy monitoring and power management systems.
Featuring a 20mm cable opening and 333mV AC output, it allows easy installation around existing conductors without disconnecting the cables.
The T20B series offers UL2808 certification and is suitable for energy meters, building energy management and industrial power monitoring applications.
100A AC input / 333mV AC output
UL2808 certified CT series
20mm cable opening
Split-core design for easy installation
Rated frequency: 50/60Hz
Compact UL94-V0 nylon housing
Customizable lead wire lengths and connectors
| Parameter | Specification |
|---|---|
| Model | XH-SCT-T20 |
| Rated Primary Current | 100A AC |
| Rated Output | 333mV AC |
| Window Size | 20.2 × 20.2mm |
| Rated Frequency | 50/60Hz |
| Rated Ratio Error | ±1% (reference for 333mV series) |
| Operating Temperature | -40°C to +55°C |
| Housing Material | Nylon, UL94-V0 |
| Dimensions | 56 × 36 × 69mm |
| Insulation Category | CAT IV 250V / CAT III 600V |
| Lead Wire | Customizable |
| Certification | UL2808 series, CE, UKCA |
Energy monitoring systems
Smart energy meters
Building energy management
Electrical distribution panels
Industrial power monitoring
Jiangyin Spark provides customized 100A/333mV split core current transformers with different lead lengths and connector options.
Contact us for datasheets, samples and quotations.
