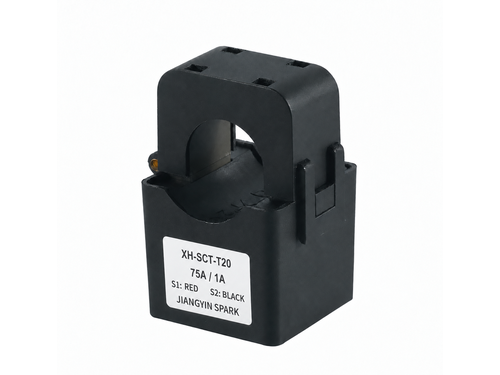

XH-SCT-T20 75A/1A
The XH-SCT-T20 75A/1A Split Core Current Transformer is designed for indoor AC current measurement and energy monitoring applications.
Featuring a 20mm window and split-core design, it allows easy installation around existing cables without disconnecting the conductor.
With a 75A primary current, 1A secondary output and Class 1.0 accuracy rating, it is suitable for compatible energy meters and industrial power monitoring systems.
75A AC input / 1A AC output
20mm split-core window
Accuracy Class 1.0
Easy installation and retrofit applications
UL94-V0 rated nylon housing
1m wire lead (UL1015, 18AWG)
Rated frequency: 50/60Hz
Parameter | Specification |
|---|---|
Model | XH-SCT-T20 |
Primary Current | 75A AC |
Secondary Output | 1A AC |
Turns Ratio | 75:1 |
Maximum Current | 90A |
Accuracy | Class 1.0 |
Window Size | Ø20mm |
Rated Frequency | 50/60Hz |
Voltage Level | 0.3/0.66/0.72kV |
Withstand Voltage | 3.0kV / 1min |
Operating Temperature | -20°C to +55°C |
Housing Material | Nylon, UL94-V0 |
Wire Lead | 1m, UL1015 18AWG |
Installation | Indoor, Split Core |
Energy monitoring systems
Industrial power measurement
Electrical distribution panels
Three-phase energy metering
Power monitoring retrofit projects
Jiangyin Spark provides current transformer solutions for different energy monitoring applications.
Contact us for product specifications, samples and quotations.
