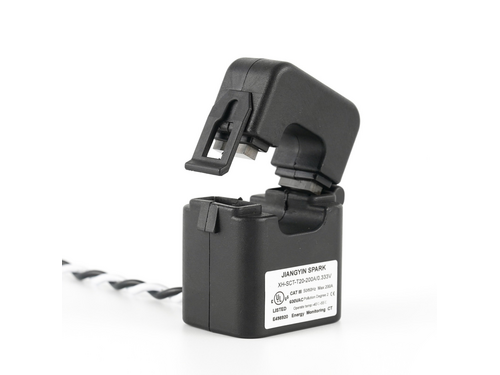

XH-SCT-T20 UL 2808 Split Core Current Transformer
The XH-SCT-T20 is a UL 2808 XOBA split core current transformer with a 20mm window for AC current measurement from 1A to 300A. Its one-handed opening design enables quick installation around existing conductors without disconnecting the circuit.
Available with 333mV, mV or mA outputs, it is suitable for energy metering, power monitoring and retrofit installations.
SPECIFICATIONS
| Parameter | Specification |
| Current Range | 1A–300A AC |
| Output | 333mV or mA |
| Window Opening | 20mm |
| Rated Voltage | 0.66kV |
| Insulation Voltage | 5.4kV |
| Frequency | 50–400Hz |
| Operating Temperature | −40°C to +85°C |
| Enclosure | UL94 V-0 |
| Certifications | UL 2808, CE, RoHS, IEC 61010-1 |
Custom current ratios, outputs, lead wires and connectors are available. For model selection, please provide the primary current, required output and conductor diameter.
