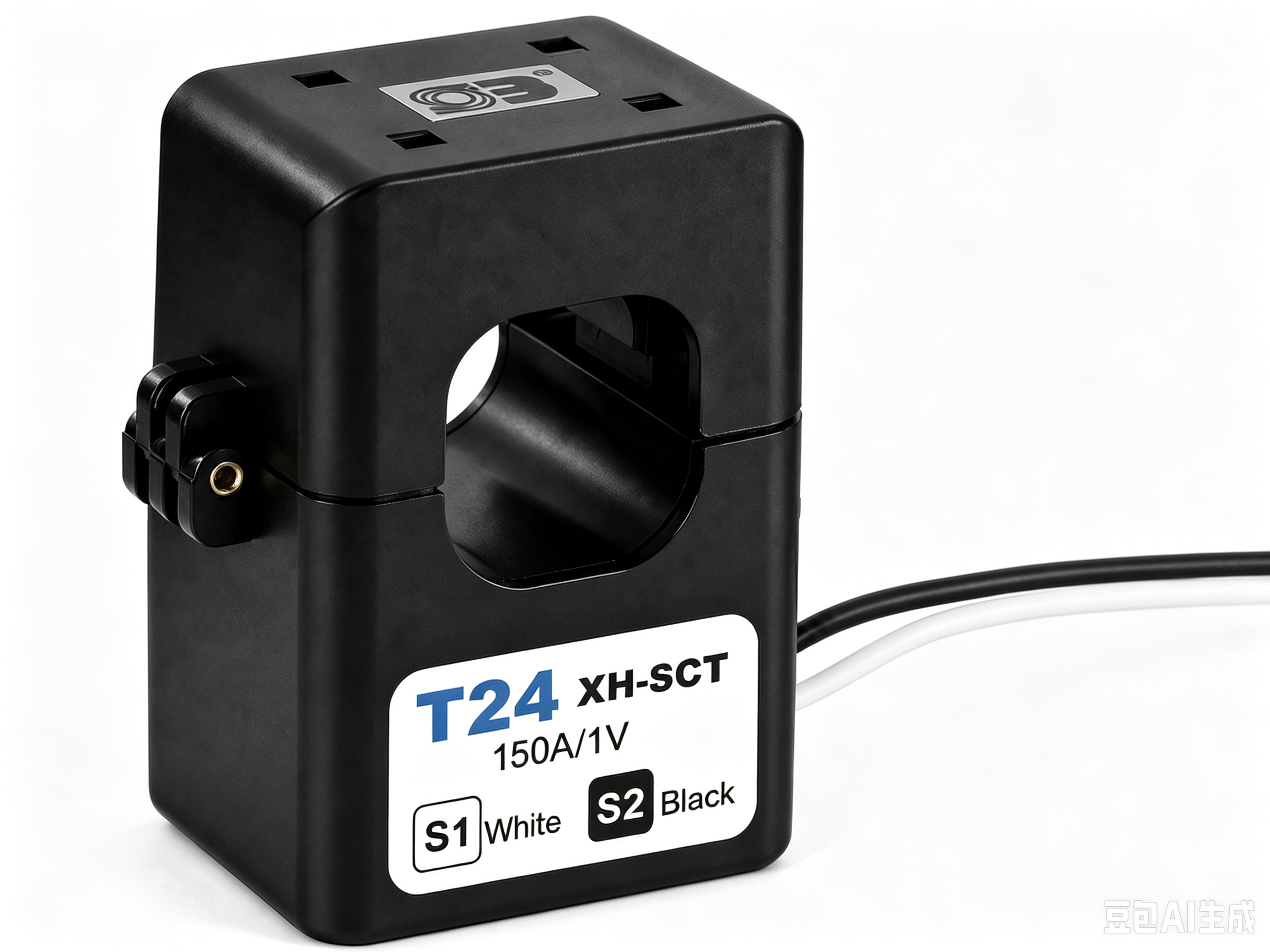

XH-SCT-T24 150A/1V Split Core Current Transformer with 24mm Window Size

The XH-SCT-T24 is an openable split core current transformer with 150A/1V ratio and 24mm inner aperture. Its split clamp design allows quick installation on cables without power cut. It provides stable voltage output for low-voltage power monitoring, energy metering and data acquisition systems. OEM customization is supported.

SPECIFICATIONS

1. Rated current: 150A

2. Rated output: 1V

3. Window Size: 24mm

4. Rated Frequency: 50Hz/60Hz

5. Insulation Voltage: 3KV

6. Operating Temperature: -15℃ to 60℃

7. Flame resistance: UL94-V0

8. Certificates: CE, UL

9. Accuracy Class: 0.5

FEATURES

1. Large 24mm aperture for thicker cables

2. Split core design for fast non-power-off installation

3. 1V voltage output, convenient for acquisition modules

4. High accuracy and stable performance for power monitoring
