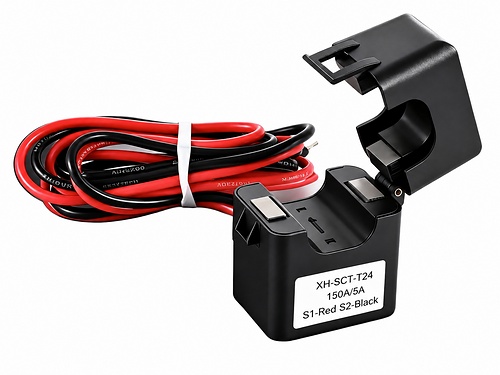

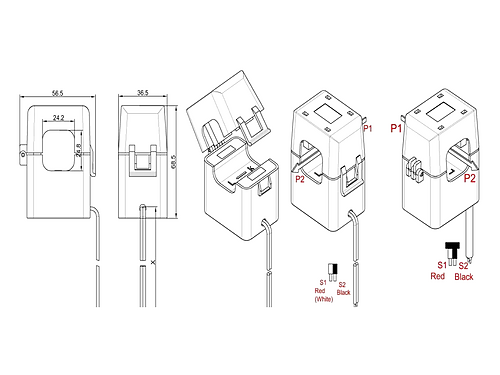

XH-SCT-T24 150A/5A Split Core Current Transformer
The XH-SCT-T24 is a 150A/5A split core current transformer with a 24mm conductor opening for AC current measurement. Its openable core allows quick installation around an existing insulated cable without disconnecting the conductor. It is suitable for energy meters, power analyzers and monitoring equipment with a standard 5A CT input.
Key Features
• 150A rated primary current
• Standard 5A secondary output
• 24mm conductor opening
• Class 1 accuracy
• 50/60Hz AC measurement
• Easy retrofit installation
• Optional 1A output
• Custom lead-wire length available
Technical Specifications
Model: XH-SCT-T24
Product Type: Split Core Current Transformer
Rated Primary Current:150A AC
Rated Secondary Current: 5A AC
Current Ratio: 150A/5A
Conductor Opening: 24mm
Accuracy Class: Class 1
Frequency: 50/60Hz
Dielectric Strength: 4kV
Output Connection: Lead Wire
Applications
• Energy metering and submetering
• Energy management systems
• Power analyzers
• Electrical distribution panels
• Building energy monitoring
• Industrial power monitoring
• Solar and energy storage systems
• Retrofit electrical projects
A 150A/5A current transformer converts a rated primary current of 150A AC into a 5A secondary current for compatible power meters and current monitoring equipment.
The XH-SCT-T24 is designed for cables with an applicable diameter of up to approximately Ø24mm.
Yes. The split-core construction allows the CT to open and clamp around an existing conductor, making it suitable for retrofit installations.
Yes, the 150A/5A model provides a 5A rated secondary current for compatible meters. The meter input specification and CT burden requirements should be checked before installation.
