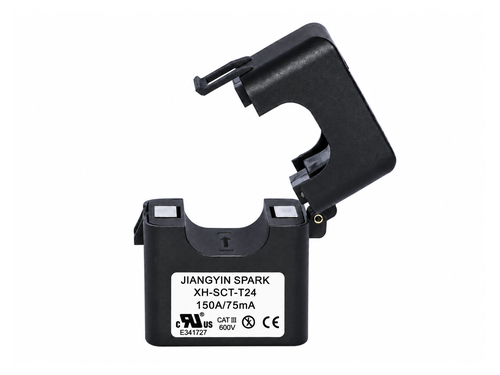

XH-SCT-T24 150A/75mA Split Core Current Transformer

The XH-SCT-T24 is a split core current transformer designed for accurate AC current measurement in energy monitoring and power management systems.

Featuring a 24mm window size, 150A primary current and 75mA secondary output, this current transformer provides a 2000:1 transformation ratio.

Its split core design allows easy installation around existing conductors without disconnecting the wiring, making it suitable for both new installations and retrofit applications.

Key Features

• Rated Primary Current: 150A AC

• Rated Secondary Output: 75mA AC

• Current Ratio: 2000:1

• Window Size: 24mm

• Model: XH-SCT-T24

• Split core design for easy installation

• UL and CE markings

• Compact and durable housing

• Custom cable lengths and connectors available

Applications

• Energy Monitoring Systems

• Smart Power Meters

• Building Energy Management Systems (BEMS)

• Industrial Power Monitoring

• Electrical Distribution Panels

• Power Monitoring and Retrofit Projects

Customization Options

Jiangyin Spark Electronic Technology Co., Ltd. offers customized current transformer solutions, including different current ratios, secondary outputs, cable lengths and connectors.

With manufacturing experience since 1995, we support OEM projects, sample evaluation and volume production.

Contact us for datasheets, samples or quotations.
