| Model: | |
|---|---|
| Primary Current: | |
| Rated Output: | |
| Opening Diameter: | |
| Frequency: | |
| Cable Length: | |
XH-SCT-T24
Jiangyin Spark

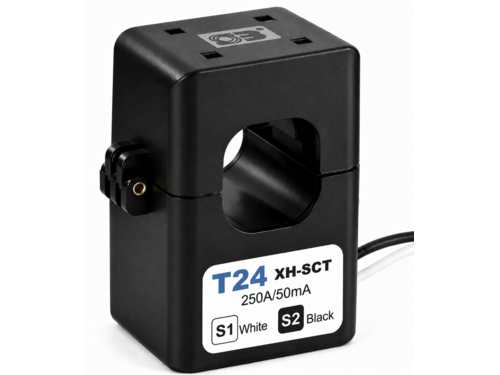

The XH-SCT-T24 250A/50mA split core current transformer features a 24 mm inner opening and is designed for AC current measurement in existing cables and conductors.
Its split-core construction allows quick installation without disconnecting the conductor, making it suitable for retrofit energy monitoring and power measurement systems. With stable output and reliable performance, the XH-SCT-T24 is widely used in energy management systems (EMS), smart metering, building energy management, industrial power monitoring, and electrical distribution systems.
OEM customization is available for current ratio, lead wire length, and other technical requirements.
250 A rated primary current
50 mA rated secondary output
24 mm inner opening
Installation without disconnecting existing conductors
Suitable for 50/60 Hz AC current measurement
Stable and reliable measurement performance
Custom current ratios and lead wire lengths available
Energy Management Systems (EMS)
Smart Metering and Submetering
Building Energy Management Systems
Industrial Power Monitoring
Electrical Distribution Panels
Retrofit Current Measurement Projects
Item | Specification |
|---|---|
Model | XH-SCT-T24 |
Type | Split Core Current Transformer |
Rated Primary Current | 250 A |
Rated Secondary Output | 50 mA |
Current Measurement Range | 0–250 A |
Maximum Current | 300 A |
Opening Size | 24 mm |
Rated Frequency | 50/60 Hz |
Lead Wire Length | 1 m |
Customization | Current ratio and lead wire length |
Q: What is the current ratio of the XH-SCT-T24?
A: The XH-SCT-T24 has a rated primary current of 250 A and a rated secondary output of 50 mA.
Q: Can it be installed without disconnecting the conductor?
A: Yes. Its split-core design allows installation around an existing conductor without disconnecting the circuit.
Q: What is the opening size of this split core CT?
A: The XH-SCT-T24 has a 24 mm inner opening for cables and conductors used in energy monitoring and power measurement systems.
Q: Can the current ratio and lead wire length be customized?
A: Yes. OEM customization is available for current ratio, lead wire length, and other technical requirements.
