XH-SCT-T24-50A/5A
Jiangyin Spark
Product Overview

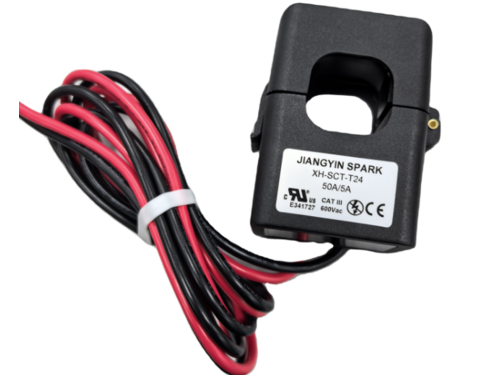

The XH-SCT-T24 is a 50A/5A split core current transformer with a 24mm aperture, designed for indoor AC current measurement. Its openable core allows installation around an existing conductor without disconnecting cables, helping reduce installation time and cost.
The transformer provides a standard 5A secondary output for connection to compatible energy meters, power meters, monitoring equipment and protection devices.
Key Features
• Rated current ratio: 50A/5A
• Split core design for quick installation
• 24mm inner aperture
• Standard 5A secondary current output
• Suitable for existing electrical installations and retrofit projects
• Cable length can be customized
• Clear polarity and secondary wiring identification
• Compact housing for installation inside electrical panels
Technical Specifications
• Model: XH-SCT-T24
• Rated primary current: 50A
• Rated secondary current: 5A
• Aperture size: 24mm
• Rated frequency: 50/60Hz
• Voltage level: 0.4/0.66/0.72kV
• Withstand voltage: 2kV, 1 minute
• Operating temperature: -20°C to +55°C
• Operating humidity: ≤95%
• Installation: Indoor use
• Connection: Secondary lead wires
• Applicable standards: EN 61869-1, EN 61869-2, IEEE C57.13, CAN/CSA-C61869-1 and CAN/CSA-C61869-2
• UL file number: E341727
Applications
• AC current measurement
• Energy meters and power meters
• Electrical distribution panels
• Energy monitoring systems
• Building energy management
• Industrial control equipment
• Retrofit electrical installations
Installation
Open the split core and place it around a single primary conductor. Close the core securely and connect the secondary leads to a compatible 5A-input measuring device. Observe the marked current direction and secondary wire polarity during installation.
Customization
Different current ratios, lead lengths and connection options can be supplied according to project requirements. Please contact us with your required specifications.
