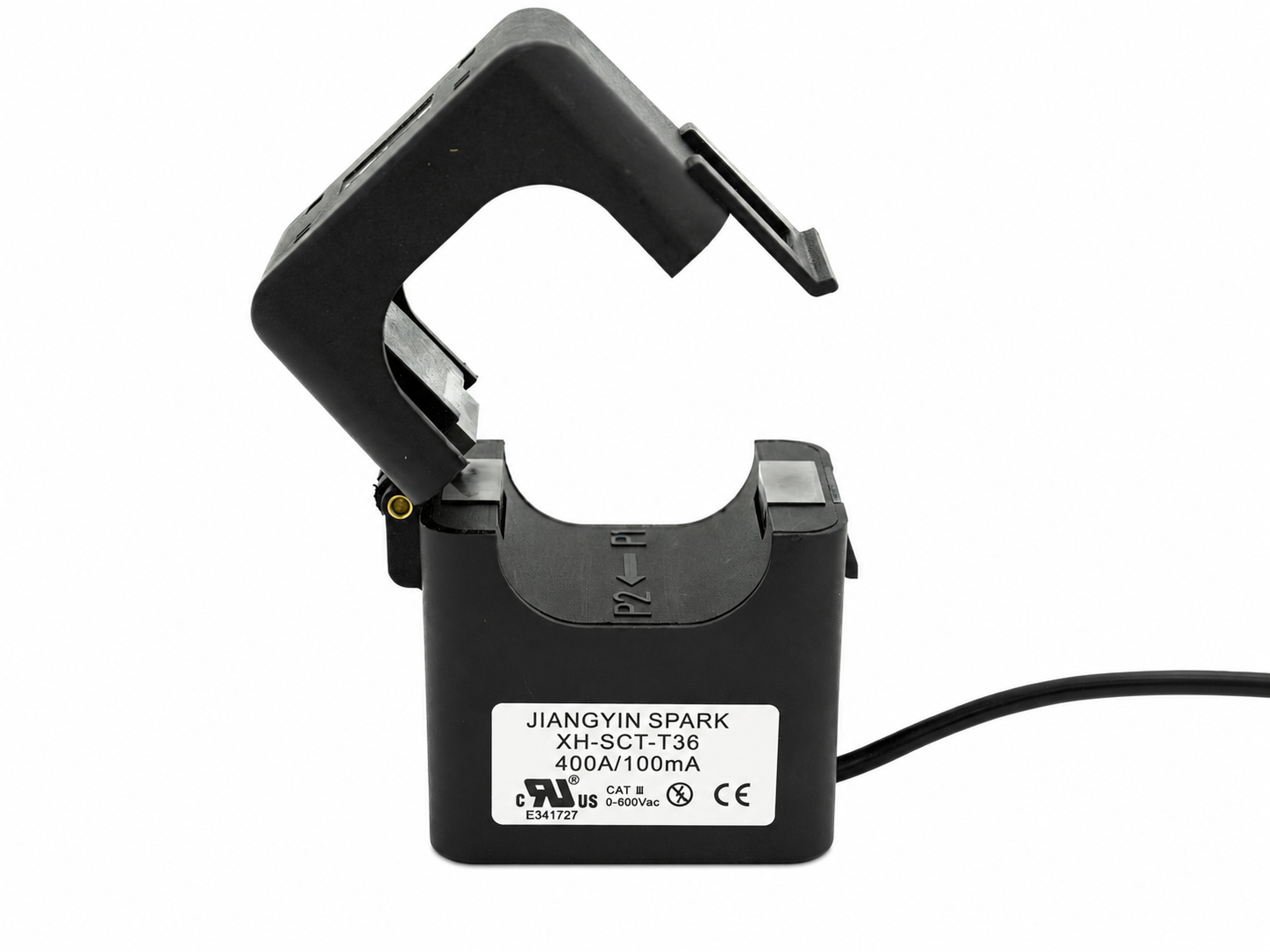

XH-SCT-T36 Split Core Current Transformer, 400A/100mA, 36mm window aperture, clamp-on split core CT for energy monitoring and power metering.
This SCT split core current sensor adopts hinged openable core structure, you can clip the CT directly onto existing live cables, no need to disconnect the primary wire, no power interruption during installation, perfect for power retrofit, energy audit and sub-metering projects.
✅ Key Features
Model: XH-SCT-T36
Current Ratio: 400A / 100mA
Window Size: 36mm inner aperture
Split core / clamp-on hinged design, quick & safe installation
For AC current measurement, 50/60Hz power system
High precision, low phase shift for accurate power & energy metering
Flame retardant plastic housing, durable for indoor power distribution cabinet
Optional flying leads, customizable cable length
✅ Applications
Energy monitoring, building sub-metering, power consumption metering, solar PV inverter monitoring, smart grid, industrial load monitoring, power quality measurement, energy management system, commercial building energy audit.
