XH-SCT-T36
Jiangyin Spark
Product Overview

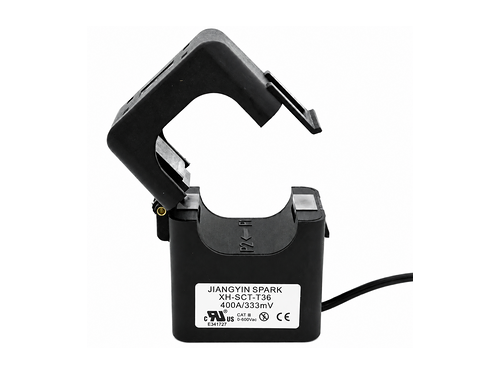

The XH-SCT-T36 is a 400A/333mV split-core current transformer designed for AC current measurement in energy monitoring, submetering and industrial power monitoring systems.
Its 36mm opening accommodates larger cables and allows installation around an existing conductor without disconnecting the circuit. This makes it suitable for electrical panels, retrofit projects and applications where interruption of the power supply is not practical.
The built-in burden resistor converts the secondary current into a low-level 333mV AC output for compatible energy meters, monitoring devices and controllers.
Key Features
Rated input: 400A AC
Rated output: 333mV AC
Built-in burden resistor
36mm opening
Split-core design for easy installation
No conductor disconnection required
Suitable for 50/60Hz AC systems
For conductors in systems up to 600VAC
Custom lead length and connector available
Typical Applications
Energy monitoring and submetering
Building energy management systems
Industrial power monitoring
Electrical distribution panels
Solar and energy storage systems
EV charging equipment
Retrofit current measurement
OEM Customization
Current ratio, output signal, lead wire length and connector can be customized according to the connected meter or monitoring equipment.
Contact Jiangyin Spark Electronic for samples, technical data or a customized 400A/333mV split-core current transformer.
