XH-SCT-T36-600A/100mA
Jiangyin Spark
Product Overview

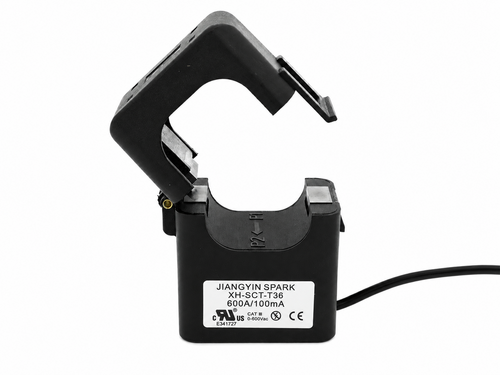

The XH-SCT-T36 is a 600A/100mA split core current transformer designed for accurate AC current measurement in indoor electrical installations. It features a 36mm aperture, Class 0.5 accuracy and a 2m twisted-pair lead wire.
The split core can be opened and installed around an existing conductor without disconnecting cables or interrupting the primary circuit. This design helps reduce installation time and makes the transformer suitable for both new installations and retrofit projects.
Key Features
• 600A rated primary current
• 100mA secondary current output
• Class 0.5 measurement accuracy
• 36mm inner aperture
• Split core design for quick installation
• No need to disconnect the primary conductor
• 2m twisted-pair lead wire
• Clear P1/P2 polarity markings
• Compact design for installation inside electrical panels
• UL recognized and CE marked
Technical Specifications
• Model: XH-SCT-T36
• Rated current ratio: 600A/100mA
• Rated primary current: 600A
• Rated secondary output: 100mA
• Aperture size: 36mm
• Accuracy class: 0.5
• Lead wire: 2m twisted-pair cable
• Measurement category: CAT III
• Maximum system voltage: 600Vac
• Installation type: Indoor
• UL file number: E341727
• Certification marks: UL and CE
Applications
• Energy meters and power meters
• AC current measurement
• Energy monitoring systems
• Electrical distribution panels
• Building energy management systems
• Industrial control equipment
• Submetering systems
• Retrofit electrical installations
Installation
Open the split core and place it around a single primary conductor. Close the transformer securely and connect the secondary lead wires to a compatible 100mA-input measuring device. Observe the P1/P2 current direction and secondary wiring polarity during installation.
Customization
Different current ratios, output signals, aperture sizes and lead-wire lengths can be supplied for OEM and project requirements. Please contact us with your required specifications.
