XH-SCT-T36
Jiangyin Spark

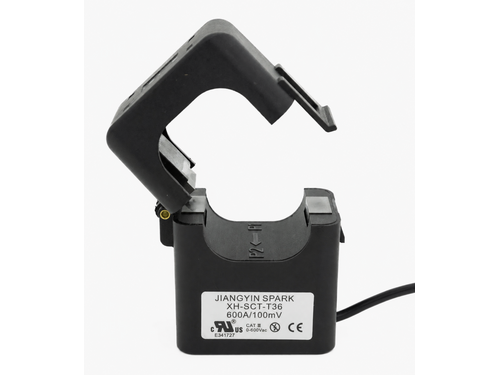

600A/100mV Split Core Current Transformer
The XH-SCT-T36 is a UL Recognized split core current transformer designed for accurate AC current measurement in energy meters, submetering systems and power monitoring equipment.
Its split-core structure allows quick installation around existing cables without disconnecting the conductor. The CT provides a 100mV output at 600A AC, with a 36mm inner window and ±1% accuracy.
Key Features
Rated input current: 600A AC
Rated output: 100mV
Inner window size: 36mm
Accuracy: ±0.5%
Standard lead wire: 1m
Frequency range: 50/60Hz
Dielectric withstand voltage: 2kV AC
Operating temperature: -15°C to +60°C
Flame-retardant enclosure: UL94 V-0
Certifications: UL Recognized, CE and RoHS
Split-core design for easy retrofit installation
Custom ratios, outputs, wire lengths and connectors available
Technical Specifications
| Model | Rated Input | Rated Output | Window Size | Lead Wire | Accuracy |
|---|---|---|---|---|---|
| XH-SCT-T36 | 600A AC | 100mV | 36mm | 1m | ±0.5% |
Typical Applications
Energy meters and power meters
Building energy submetering
Energy management systems
Industrial power monitoring
Solar and renewable energy systems
Electrical equipment monitoring
Retrofit current measurement projects
Contact us for samples, technical drawings or customized specifications.
