XH-SCT-T36
Jiangyin Spark

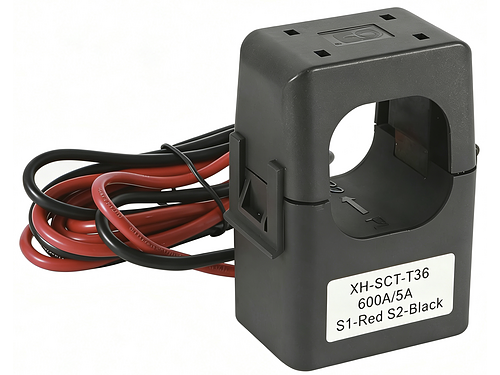

XH-SCT-T36 600A/5A Split Core Current Transformer
The XH-SCT-T36 is a 600A/5A split core current transformer with a 36mm conductor opening for AC current measurement.Its openable core allows quick installation around an existing insulated cable without disconnecting the conductor. It is suitable for energy meters, power analyzers and monitoring equipment with a standard 5A CT input.
Key Features
• 600A rated primary current
• Standard 5A secondary output
• 36mm conductor opening
• Class 0.5 accuracy
• 50/60Hz AC measurement
• Easy retrofit installation
• Optional 1A output
• Custom lead-wire length available
Technical Specifications
Model: XH-SCT-T36
Product Type: Split Core Current Transformer
Rated Primary Current: 600A AC
Rated Secondary Current: 5A AC
Current Ratio: 600A/5A

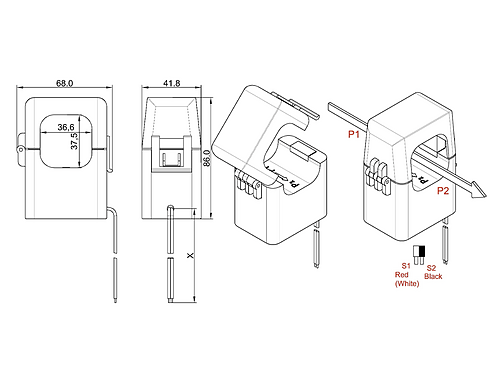

Conductor Opening: 36mm
Accuracy Class: 0.5
Frequency: 50/60Hz
Dielectric Strength: 4kV
Output Connection: Lead wire
Applications
• Energy metering and submetering
• Energy management systems
• Power analyzers
• Electrical distribution panels
• Building energy monitoring
• Industrial power monitoring
• Solar and energy storage systems
• Retrofit electrical projects
