100A/40mA Split Core Current Transformer
The XH-SCT-T16 is a UL Recognized split core current transformer designed for non-intrusive AC current measurement. It features a 100A primary current, 40mA output, 2500:1 turns ratio and 16mm window.
Key Features
• 100A/40mA current ratio
• 16mm window opening
• 2500:1 turns ratio
• Easy retrofit installation
• UL Recognized
• Custom leads and connectors available

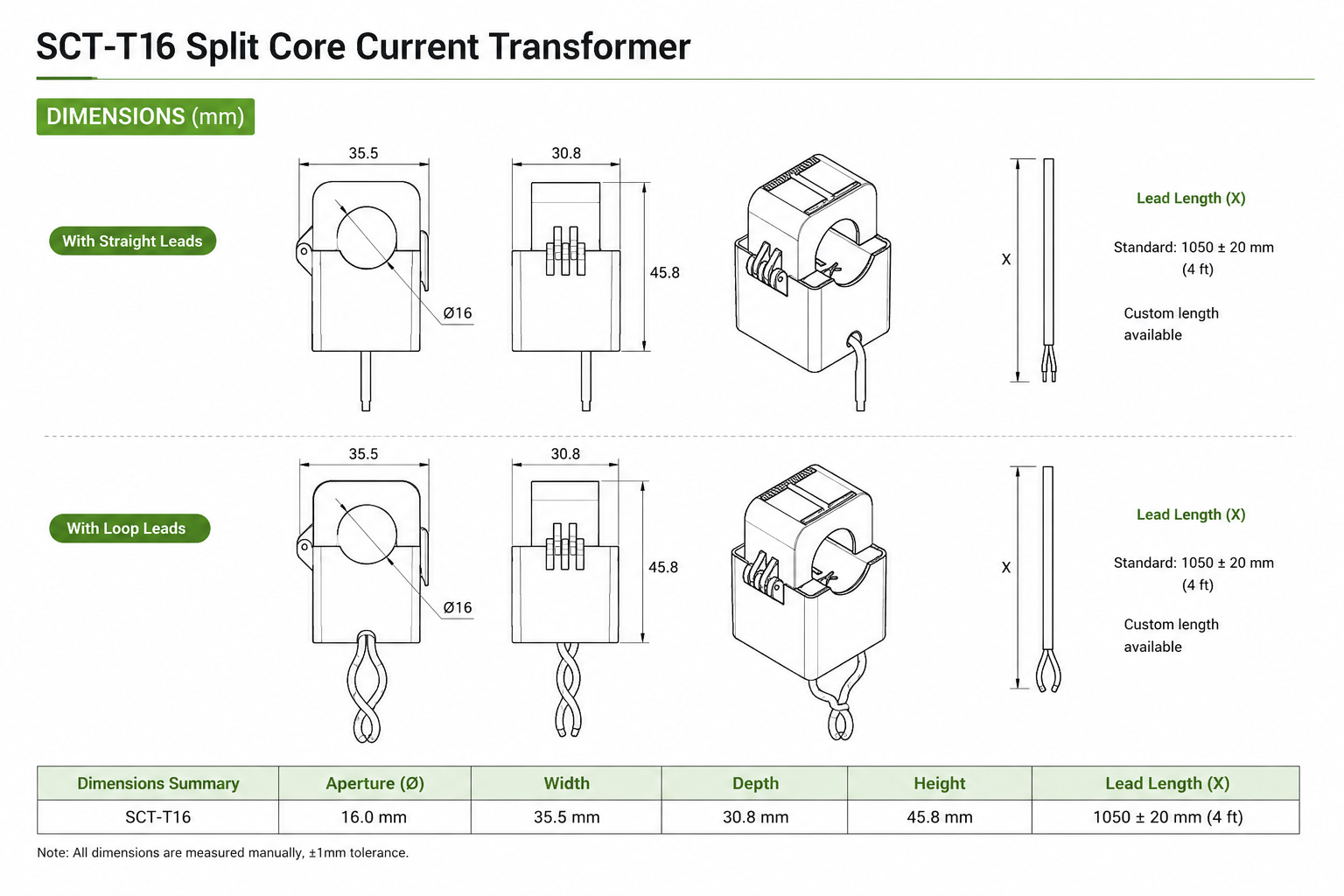

Drawing size
Applications
Suitable for energy meters, EV charging, solar energy systems, building energy management and industrial power monitoring.
Customization
Lead length, wire specifications, connectors and labels can be customized for OEM applications. Samples are available for evaluation.
