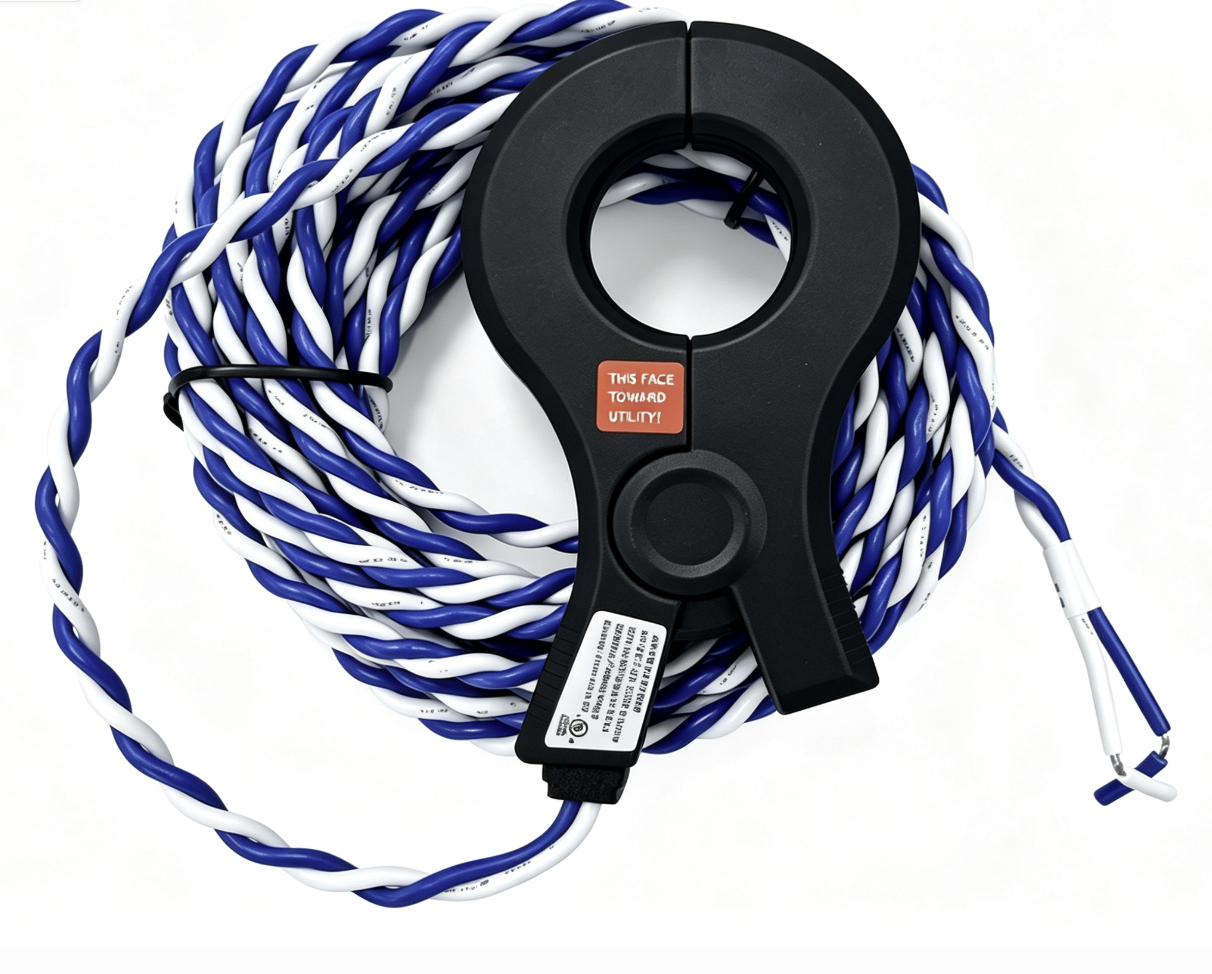

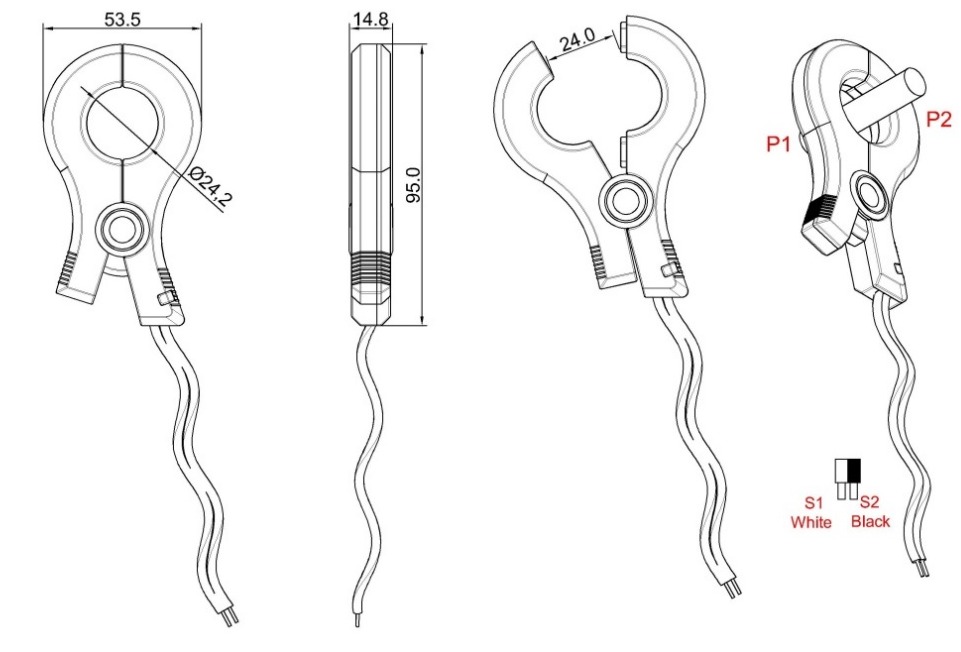

XH-SCT-S24 Series Clamp-On Current Transformer
The XH-SCT-S24 series clamp-on current transformer enables quick, hassle-free field installation. Adopting permalloy magnetic core or silicon amorphous core, this split-core CT features compact size, high measurement accuracy, stable performance and strong anti-interference capability.
It provides standard AC current output for single-phase and three-phase circuit measurement, making it ideal for high-precision power & energy metering with low phase angle error. Widely used in power systems, telecommunications, monitoring and control projects, the sensor supports current measurement without cable disconnection.
The standard lead length is 1 meter; custom output ratios and cable lengths are available upon request.
Technical Parameters
Rated Current: 0-300A
Frequency: 50-60Hz
Accuracy Class: 1%
Compliance & Certification: UL Certificate, ANSI C57.13, IEC61869-2
Custom turns ratio supported
| Parameter | Specification | ||
|---|---|---|---|
| Ratio | 50A/25mA | 200A/100mA | 50/100/150/300A/0.333V |
| Current Range | 0.5–50A (RL=10Ω) | 2–200A (RL=10Ω) | 0.5–300A |
| Maximum Current | 200A | 240A | 360A |
| Rated Phase Error | +1.5±0.5° | ||
| Rated Ratio Error | ±0.5% | ||
