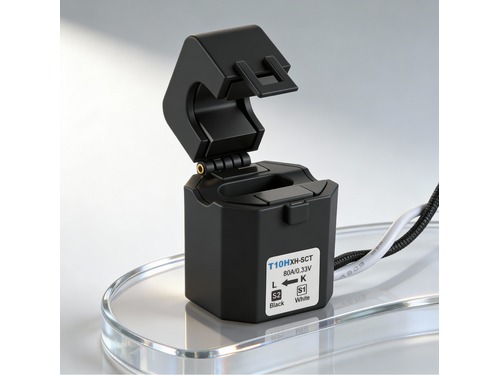

XH-SCT-T10
Jiangyin Spark
UL CE Split core current transformer
1,Rated Voltage:0.66KV
2,Insulation Voltage:2KV
3,Rated Frequency:50HZ / 60HZ
4,Operating Temperature:-40℃ to +55 ℃
5,Flame resistance:UL94-V0
6,Certificates:CE,UL
Features
1) The structure of the self-locking, safe, easy to install, portable
2) Wide inner window, allowing clamping of big cables or bus-bars
3) Wide range of sizes to accommodate all the existing installations
4) Isolated plastic case recognized according to UL94-V0
Specification
| Model | SCT-10 | ||||
| Current Ratio | 5A/2.5mA | 20A/10mA | 60A/20mA | 75A/25mA | 1-80A/0.333V |
| Primary Current (A) | 5A | 20A | 50A | 75A | 1-80A |
| Max. Current (A) | 60A | 60A | 75A | 75A | 1-80A |
| Output | 2.5mA | 10mA | 20mA | 25mA | 0.333V |
| Load Resistance (Ω) | 400Ω | 100Ω | 50Ω | 20Ω | 20Ω |
| Turns Ration | 2000:1 | 2000:1 | 3000:1 | 3000:1 | 3000:1 |
| Class | 1.0 | ||||
| Insuliation Category | CATIII | ||||
| Operating Condition | -40℃ ~ +55℃, ≤85%RH, No condensation, IN-house & Any direction installable | ||||
