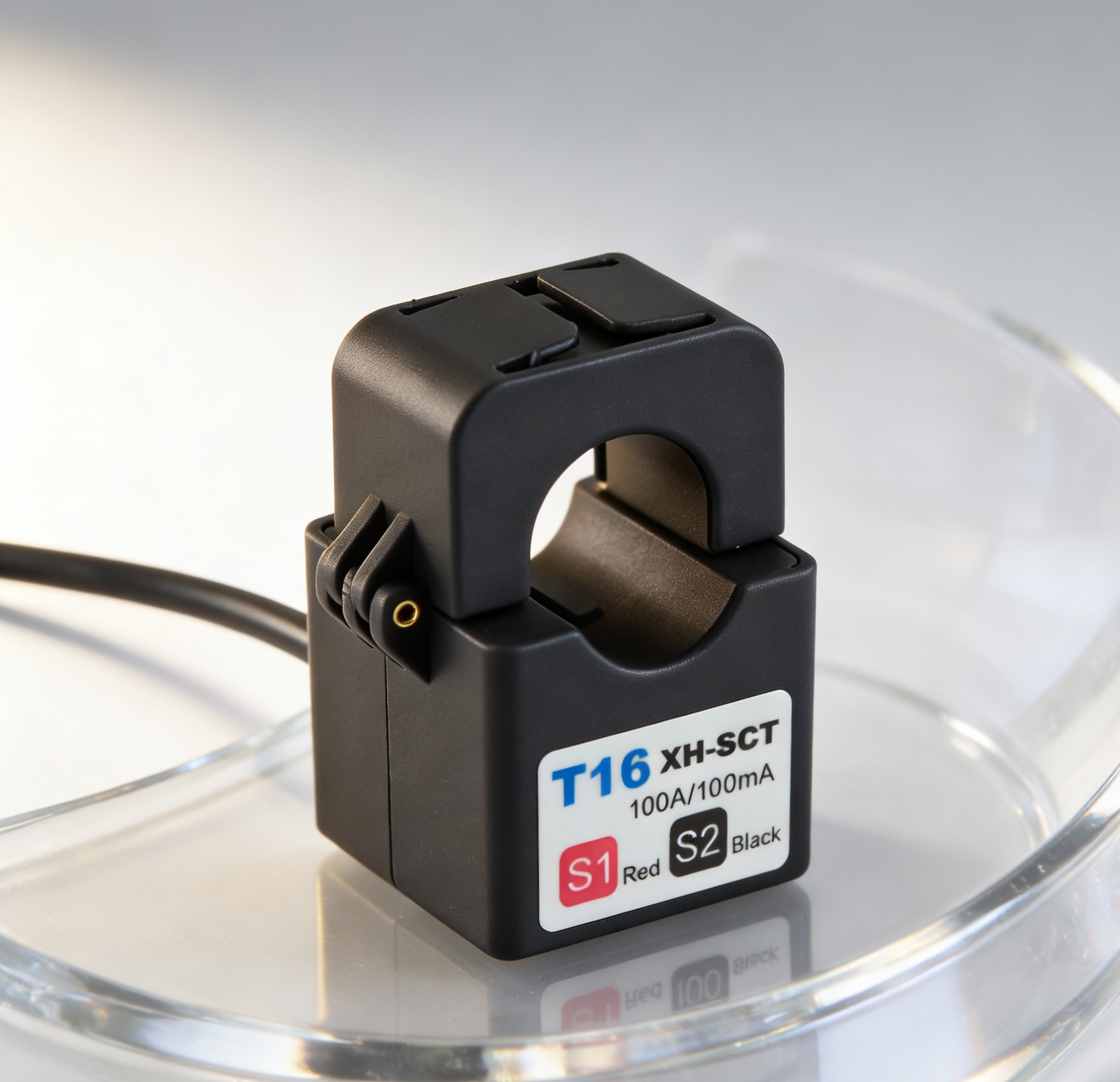

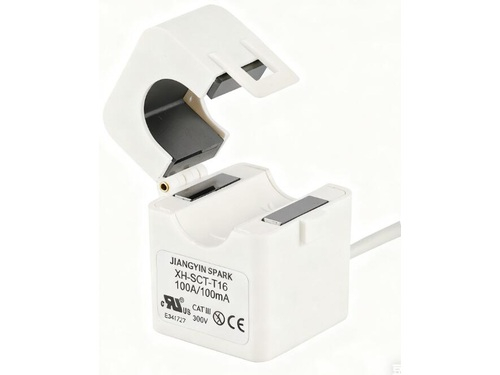

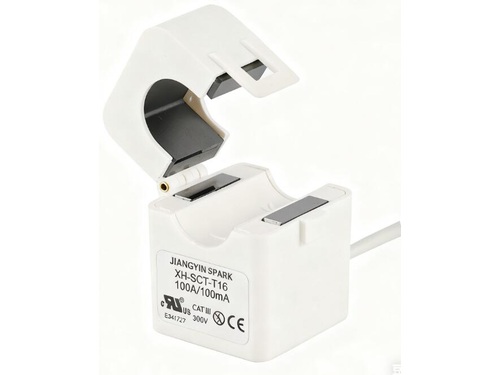

XH-SCT-T16 Split Core Curren Transformer CTs
Specifications
1.Diameter:16mm
2.Rated current:0-100A
3.Rated output:100mA
4.Insulation Voltage:3KV
5.Rated Frequency:50HZ/60HZ
6.Operating Temperature:-15℃to 60℃
7.Flame resistance:UL94-V0
8.Certificates:CE,UL
9.Class:1.0
Features
1.Small cost
2.Split core design ,Easier installation
3 .Build diode ,no high voltage danger
4.Good linearity at very low current
Applications
Power metering Sub-metering for building, energy efficiency monitoring, consumption analysis, and cost allocation Power quality monitoring for distribution system equipment Condition monitoring for conveyors, pumps, etc. Hybrid inverter for home energy storage Distributed measurement systems
Drawing size
