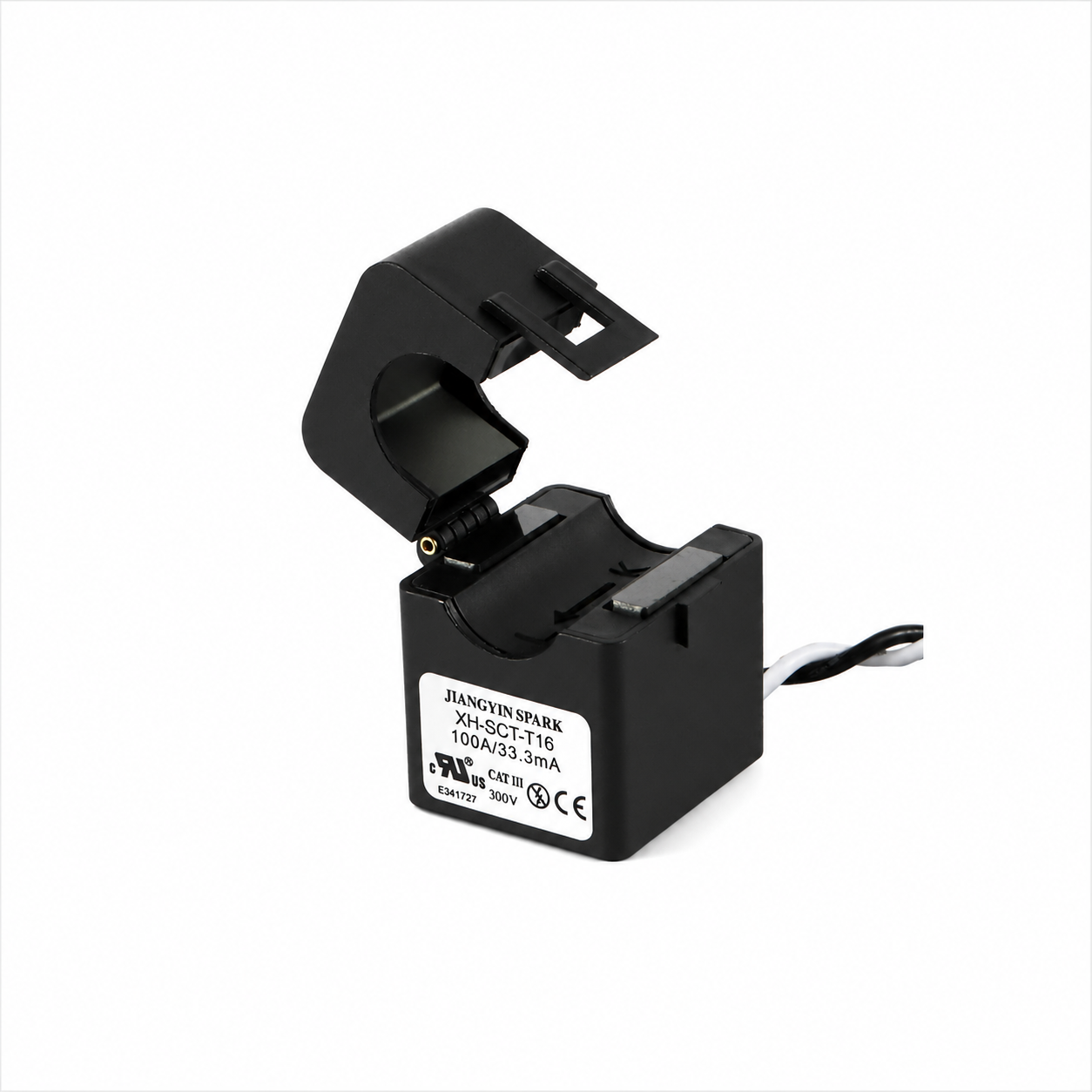

100A/33.33mA Split Core Current Transformer for Solar Inverter Energy Monitoring

Split Core Current Transformer with CE & UL Certification

33.33mA Secondary Output Split Core Current Transformer

JIANGYIN SPARK split core current transformers are designed for fast and easy installation. The split core design allows AC current measurement without disconnecting the primary conductor, making installation safer, easier and more convenient.

The compact design is suitable for new installations and retrofit projects. Output and lead wire specifications can also be customized according to customer requirements.

Features

• Split core design for quick and easy installation

• No need to disconnect the primary conductor

• Compact and portable design

• High accuracy and good linearity

• Suitable for AC current measurement

• Output and lead wires can be customized

Specifications

• Rated Current: 5A to 100A

• Rated Output: 33.33mA AC

• Accuracy: ±1% from 5% to 120% of rated current

• Phase Angle: Less than 2° at 50% of rated current

• Insulation Voltage: 600Vac

• Maximum Primary Voltage: 5000Vac (Insulated Conductor)

• Operating Temperature: -15°C to +60°C

• Frequency Range: 50–400Hz

• Lead Wire: 4 ft (105cm), UL1015, 24AWG

• Certification: UL & CE

• RoHS Compliant

• Customized output and lead wire available

Applications

Suitable for AC current measurement in:

• Solar inverters

• Energy meters

• Energy monitoring systems

• Power management systems

• Building automation systems

• HVAC systems

• Electric motors and industrial equipment
