XH-SCT-T24
Jiangyin Spark

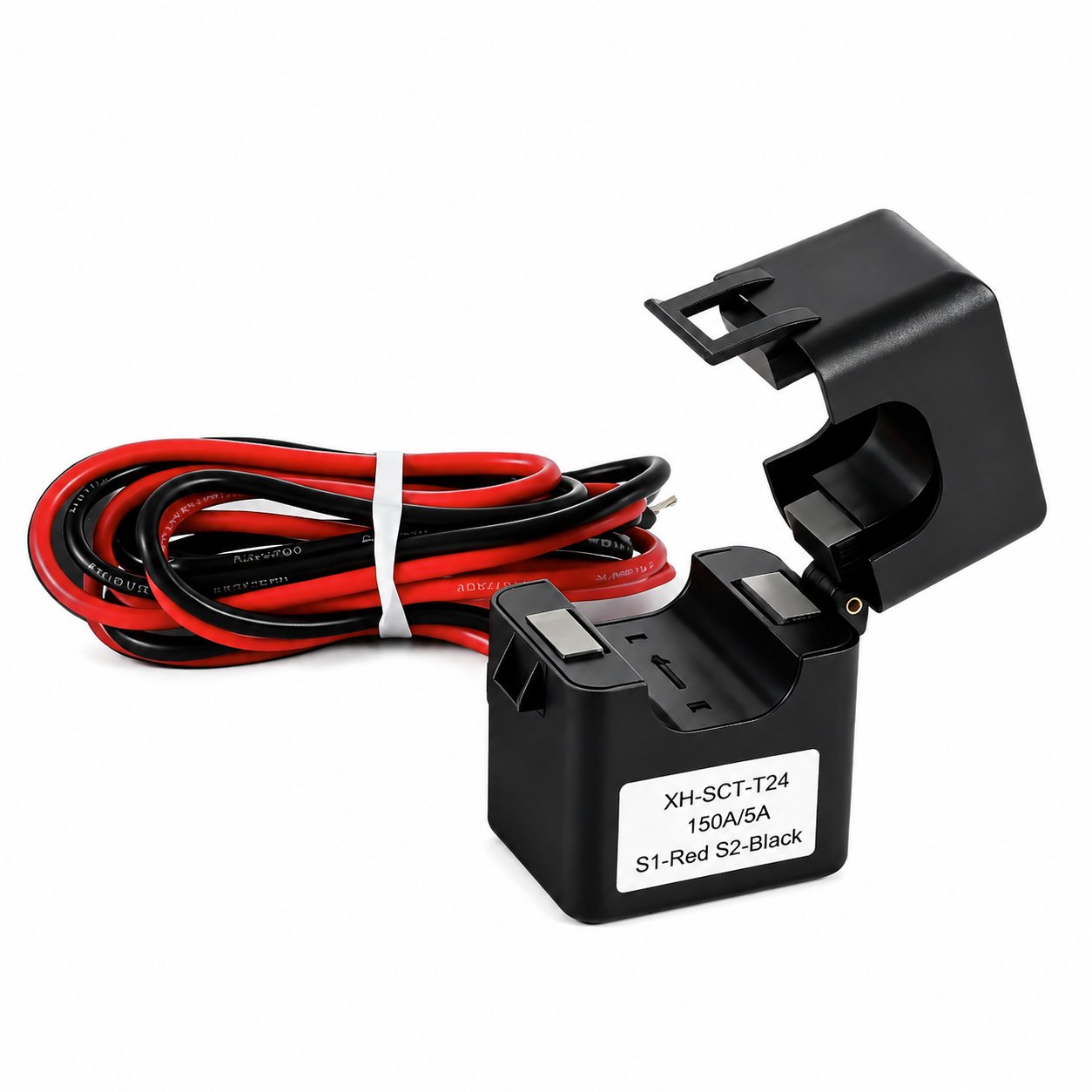

The XH-SCT-T24 150A/5A Split Core Current Transformer is designed for AC current measurement in energy monitoring, electrical metering and power monitoring applications.
Its split-core (clip-on) design allows installation around an existing cable without disconnecting the conductor, making it especially suitable for retrofit electrical systems, distribution panels and energy monitoring projects.
The 150A/5A model features Accuracy Class 1.0 and a rated burden of 1.0VA, with a maximum applicable cable diameter of Ø24mm.
Rated current ratio: 150A/5A
Accuracy Class 1.0
Rated burden: 1.0VA
Split-core / clip-on installation
Maximum applicable cable diameter: Ø24mm
Rated frequency: 50/60Hz
Suitable for indoor applications
Easy installation without disconnecting existing cables
Suitable for retrofit energy monitoring systems
Compact and durable housing
Customized secondary cable length available
OEM solutions available
| Specification | XH-SCT-T24 150A/5A |
|---|---|
| Model | XH-SCT-T24 |
| Product Type | Split Core Current Transformer |
| Rated Primary Current | 150A AC |
| Rated Secondary Current | 5A |
| Current Ratio | 150A/5A |
| Accuracy Class | 1.0 |
| Rated Burden | 1.0VA |
| Rated Frequency | 50/60Hz |
| Applicable Voltage Level | 0.4 / 0.66 / 0.72kV |
| Withstand Voltage | 2kV / 1mA / 1min |
| Operating Temperature | -20°C to +55°C |
| Operating Humidity | ≤95% |

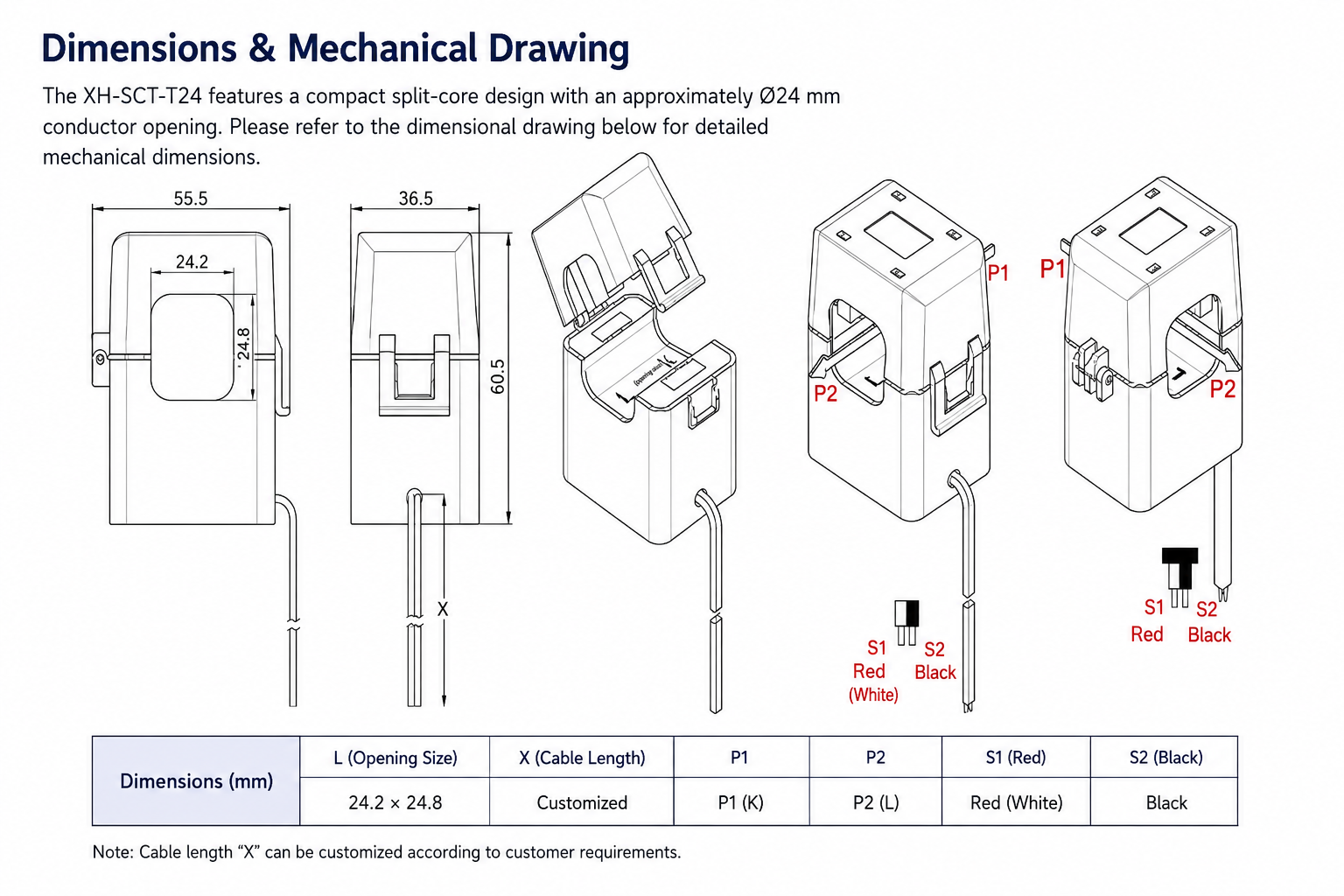

| Applicable Cable Diameter | Ø24mm |
| Installation Type | Split Core / Clip-On |
| Application | Indoor |
| UL File No. | E341727 |
| Secondary Cable | 2.5mm² or 1.5mm² RVB |
| Cable Length | Customized |
The XH-SCT-T24 150A/5A split core CT can be used in a variety of AC current measurement and monitoring applications, including:
Energy monitoring systems
Power meters and multifunction meters
Building Energy Management Systems (BEMS)
Energy Management Systems (EMS)
Electrical distribution panels
Industrial power monitoring
Retrofit energy monitoring projects
Electrical control and automation systems
Unlike a conventional solid-core current transformer, the XH-SCT-T24 split core CT can be opened and installed directly around an existing conductor.
This allows installation without removing or disconnecting the primary cable, helping reduce installation time and making the CT particularly suitable for upgrading existing electrical panels and power monitoring systems.
The Ø24mm cable opening makes the XH-SCT-T24 suitable for a wide range of indoor cable-type current measurement applications.
The XH-SCT-T24 converts a primary current of 150A AC into a 5A secondary current for compatible power meters, multifunction meters and monitoring equipment.
For the 150A/5A version, the reference performance is:
Current Ratio: 150A/5A
Accuracy Class:1.0
Rated Burden: 1.0VA
Frequency: 50/60Hz
Before installation, the CT ratio, rated burden and input requirements of the connected meter should be checked to ensure compatibility.
The XH-SCT-T24 series is available with both 5A and 1A secondary outputs.
5A Output Options:
100A/5A
150A/5A
200A/5A
250A/5A
300A/5A
1A Output Options:
100A/1A
150A/1A
200A/1A
250A/1A
300A/1A
Different current ratios and secondary cable lengths can be provided according to project requirements.
A 150A/5A current transformer converts a rated primary current of 150A AC into a 5A secondary current for compatible power meters and current monitoring equipment.
The XH-SCT-T24 is designed for cables with an applicable diameter of up to approximately Ø24mm.
Yes. The split-core construction allows the CT to open and clamp around an existing conductor, making it suitable for retrofit installations.
Yes, the 150A/5A model provides a 5A rated secondary current for compatible meters. The meter input specification and CT burden requirements should be checked before installation.
Yes. The XH-SCT-T24 series is available from 100A to 300A with 1A or 5A secondary output, depending on the required specification.
Yes. Secondary cable specifications and cable lengths can be customized according to customer requirements.
Jiangyin Spark Electronic supplies split core current transformers for energy monitoring, power metering and electrical monitoring applications.
If you are looking for an XH-SCT-T24 150A/5A split core current transformer, contact us for technical specifications, samples, customized cable lengths and OEM current transformer solutions.
